Licence Overview
The link registered to Kiwirail is a UHF band link at 851.25MHz. It transmits from Rimutaka Tunnel W, and is received at Maoribank Tunnel Hut, a distance of 1.77km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Licence and Location Details
| Licence | |
|---|---|
| Frequency | 851.25MHz |
| Frequency Range | 851MHz - 851.5MHz |
| Channel Width | 500kHz |
| Channel Code | KK1# |
| Power dBW(eirp) | 0 |
| Emission | 500KF7WWT |
| Licence Type | Fixed < 1GHz; BW >50kHz (Bi-directional) |
| Commenced | Thu 15th Oct 2015 7 years ago |
| Licence Last Updated | Thu 22nd Sep 2022 1 year ago |
| Link Distance | 1.77km |
| RSM Licence ID | 180413 |
| RSM Licence # | 250916 |

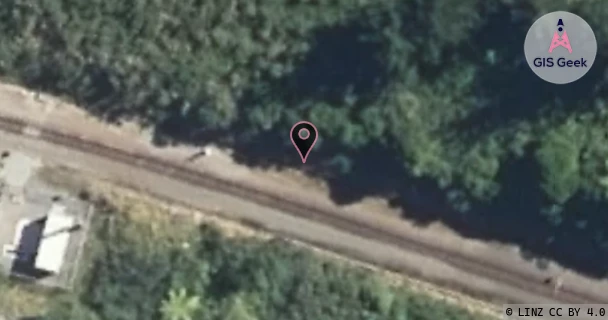

| TX: Rimutaka Tunnel W | |
|---|---|
| Antenna | POLAR - 847 |
| Antenna Type | CORNER REFLECTOR |
| Equipment | 4Rf - APRISA XE 800 |

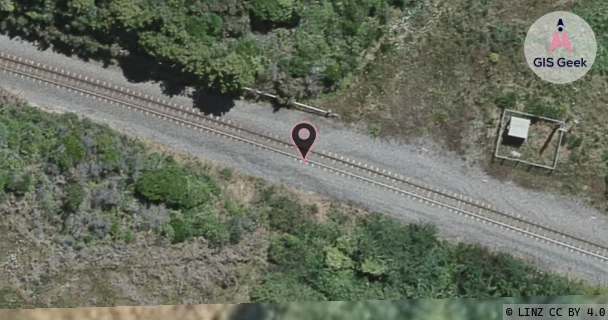

| RX: Maoribank Tunnel Hut | |
|---|---|
| Antenna | POLAR - 847 |
| Antenna Type | CORNER REFLECTOR |
| Equipment | 4Rf - APRISA XE 800 |
Associated Licence
| #1: Maoribank Tunnel Hut | |
|---|---|
| Frequency | 806.25MHz |
| Frequency Range | 806MHz - 806.5MHz |
| Channel Width | 500kHz |
| Channel Code | KK1 |
| Power dBW(eirp) | 0 |
| Emission | 500KF7WWT |
| Licence Type | Fixed < 1GHz; BW >50kHz (Bi-directional) |
| Commenced | Thu 15th Oct 2015 7 years ago |
| Licence Last Updated | Thu 22nd Sep 2022 1 year ago |
| RSM Licence ID | 180412 |
| RSM Licence # | 250915 |
