Point to Point Link: Chorus New Zealand Limited - Manawahe Telecom

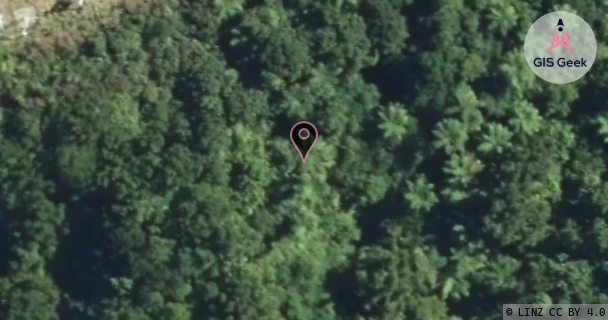

Chorus New Zealand Limited - Manawahe Telecom aerial image

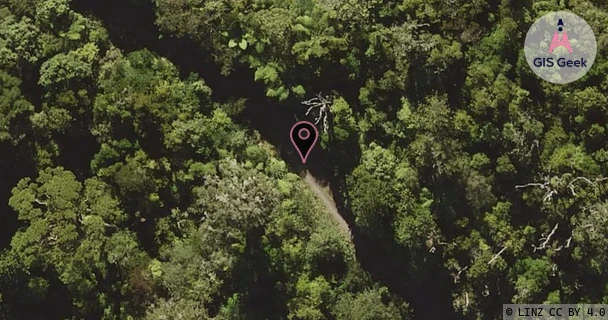

Chorus New Zealand Limited - Manawahe Telecom aerial image

Licence Overview

The link registered to Chorus New Zealand Limited is a C band link at 7.624GHz. It transmits from Manawahe Telecom, and is received at Putauaki, a distance of 14.37km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Chorus New Zealand Limited3
Kordia Limited2
Media Bay Of Plenty Limited1

Licence and Location Details

Licence
Frequency7.624GHz
Frequency Range7.613GHz - 7.635GHz
Channel Width21.05MHz
Channel Code7GU6#
Power dBW(eirp)40.7
Emission21M5G9WWT
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance14.37km
RSM Licence ID29524
RSM Licence #53311
TX: Manawahe Telecom
AntennaANDREW - HPX6-71E
Antenna TypePARABOLA V-U-BANDS
EquipmentFujitsu - DM7G-100H (+30)
RX: Putauaki
AntennaANDREW - HPX6-71E
Antenna TypePARABOLA V-U-BANDS
EquipmentFujitsu - DM7G-100H (+30)

Associated Licence

#1: Putauaki
Frequency7.463GHz
Frequency Range7.452GHz - 7.474GHz
Channel Width21.05MHz
Channel Code7GU6
Power dBW(eirp)40.7
Emission21M5G9WWT
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID20014
RSM Licence #53312

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Chorus New Zealand LimitedManawahe TelecomVHF168.9MHz Mt Ngongotaha
Chorus New Zealand LimitedManawahe TelecomC6.46GHz Whakatane Cax
Chorus New Zealand LimitedManawahe TelecomC6.54GHz Whakatane Cax
Chorus New Zealand LimitedManawahe TelecomC6.62GHz Whakatane Cax
Chorus New Zealand LimitedManawahe TelecomC6.74GHz Whakatane Cax
Chorus New Zealand LimitedMt NgongotahaVHF162.95MHz Manawahe Telecom
Chorus New Zealand LimitedWhakatane CaxC6.8GHz Manawahe Telecom
Chorus New Zealand LimitedWhakatane CaxC6.88GHz Manawahe Telecom
Chorus New Zealand LimitedWhakatane CaxC6.96GHz Manawahe Telecom
Chorus New Zealand LimitedWhakatane CaxC7.08GHz Manawahe Telecom
Kordia LimitedManawahe TelecomC7.748GHz Whakatane
Kordia LimitedWhakataneX8.059GHz Manawahe Telecom
Media Bay Of Plenty Limited1Xx StudioUHF929.38MHz Manawahe Telecom
Media Bay Of Plenty Limited1Xx StudioUHF929.88MHz Manawahe Telecom
Media Bay Of Plenty Limited1Xx StudioUHF931.38MHz Manawahe Telecom
Media Bay Of Plenty Limited1Xx StudioUHF932.25MHz Manawahe Telecom
Media Bay Of Plenty Limited1Xx StudioUHF932.75MHz Manawahe Telecom
Media Bay Of Plenty Limited1Xx StudioUHF934.63MHz Manawahe Telecom

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Chorus New Zealand LimitedNatural Gas Corp Pump Station PutauakiUHF454.53MHz Putauaki
Chorus New Zealand LimitedNatural Gas Corp Pump Station PutauakiUHF454.85MHz Putauaki
Chorus New Zealand LimitedPutauakiVHF171.53MHz Whakatane Cax
Chorus New Zealand LimitedPutauakiUHF459.56MHz Natural Gas Corp Pump Station Putauaki
Chorus New Zealand LimitedPutauakiUHF459.89MHz Natural Gas Corp Pump Station Putauaki
Chorus New Zealand LimitedWhakatane CaxVHF163.08MHz Putauaki
Kordia Limited29 KopukairuaX8.178GHz Putauaki(Rtua)
Kordia LimitedPutauaki(Rtua)C7.866GHz 29 Kopukairua
Taumata Plantations LimitedHoupoto ForestUHF427.35MHz Putauaki
Taumata Plantations LimitedPutauakiUHF422.34MHzMultiple: Waikawa Point, Houpoto Forest
Taumata Plantations LimitedWaikawa PointUHF427.35MHz Putauaki
Vital Limited35 PukehokoX10.511GHz Putauaki
Vital LimitedPutauakiX10.602GHz 35 Pukehoko
