Point to Point Link: Chorus New Zealand Limited - Kraacks Hill

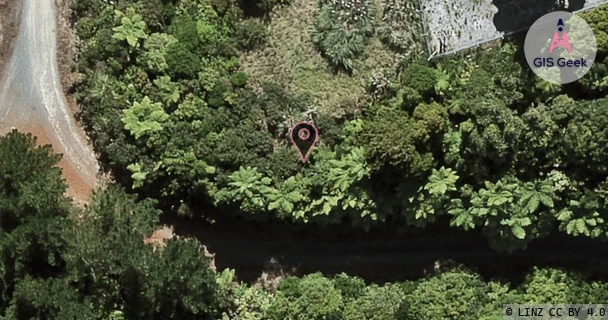

Chorus New Zealand Limited - Kraacks Hill aerial image
Chorus New Zealand Limited - Kraacks Hill aerial image

Licence Overview

The link registered to Chorus New Zealand Limited is a C band link at 7.435GHz. It transmits from Kraacks Hill, and is received at Torbay Radio, a distance of 37.61km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Chorus New Zealand Limited4
Eonfibre Limited3
Kordia Limited2
Tait Systems Nz Limited5
Vector Limited7
Vital Limited5

Licence and Location Details

Licence
Frequency7.435GHz
Frequency Range7.424GHz - 7.446GHz
Channel Width21.05MHz
Channel Code7GU2
Power dBW(eirp)43.7
Emission21M5D9WWT
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance37.61km
RSM Licence ID19524
RSM Licence #52363
TX: Kraacks Hill
AntennaANDREW - HP8-71D
Antenna TypePARABOLIC V, U BANDS
EquipmentFujitsu - DM7G-100H (+30)
RX: Torbay Radio
AntennaANDREW - HP8-71D
Antenna TypePARABOLIC V, U BANDS
EquipmentFujitsu - DM7G-100H (+30)

Associated Licence

#1: Torbay Radio
Frequency7.596GHz
Frequency Range7.585GHz - 7.607GHz
Channel Width21.05MHz
Channel Code7GU2#
Power dBW(eirp)43.7
Emission21M5D9WWT
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID19523
RSM Licence #52362

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Chorus New Zealand LimitedKawau IslandKu12.765GHz Kraacks Hill
Chorus New Zealand LimitedKraacks HillC7.463GHz Wellsford
Chorus New Zealand LimitedKraacks HillC7.519GHz Wellsford
Chorus New Zealand LimitedKraacks HillX10.775GHz Warkworth
Chorus New Zealand LimitedKraacks HillX10.855GHz Warkworth
Chorus New Zealand LimitedKraacks HillKu13.031GHz Kawau Island
Chorus New Zealand LimitedWarkworthX11.305GHz Kraacks Hill
Chorus New Zealand LimitedWarkworthX11.385GHz Kraacks Hill
Chorus New Zealand LimitedWellsfordC7.624GHz Kraacks Hill
Chorus New Zealand LimitedWellsfordC7.68GHz Kraacks Hill
Eonfibre LimitedKraacks HillKu13.213GHz Off Mangatawhiri Road Omaha (Vf N2Oha)
Eonfibre LimitedKraacks HillK18.525GHz View Road
Eonfibre LimitedKraacks HillK18.525GHz View Road
Eonfibre LimitedOff Mangatawhiri Road Omaha (Vf N2Oha)Ku12.947GHz Kraacks Hill
Eonfibre LimitedView RoadK19.535GHz Kraacks Hill
Eonfibre LimitedView RoadK19.535GHz Kraacks Hill
Kordia LimitedJervis Road WaiweraC7.387GHz Kraacks Hill
Kordia LimitedKraacks HillC7.226GHz Jervis Road Waiwera
Tait Systems Nz LimitedKraaks HillC7.195GHz Mangawhai
Tait Systems Nz LimitedKraaks HillKu13.031GHz Raktai - Te Arai
Tait Systems Nz LimitedKraaks HillKu13.087GHz Wellsford East
Tait Systems Nz LimitedKraaks HillKu13.171GHz Tauhoa
Tait Systems Nz LimitedMangawhaiC7.355GHz Kraaks Hill
Tait Systems Nz LimitedRaktai - Te AraiKu12.765GHz Kraaks Hill
Tait Systems Nz LimitedTauhoaKu12.905GHz Kraaks Hill
Tait Systems Nz LimitedWellsford EastKu12.821GHz Kraaks Hill
Vector LimitedAlbany HeightsC7.708GHz Kraaks Hill
Vector LimitedKraacks HillUHF454.32MHzMultiple: Warkworth Substation, Wayby Substation
Vector LimitedKraacks HillKu13.143GHz Wellsford Substation
Vector LimitedKraacks HillKu13.143GHz Snells Beach
Vector LimitedKraacks HillK18.298GHz Wellsford Substation
Vector LimitedKraacks HillK18.305GHz Warkworth South Substation
Vector LimitedKraaks HillC7.547GHz Albany Heights
Vector LimitedKraaks HillK18.333GHz Warkworth Substation
Vector LimitedSnells BeachKu12.877GHz Kraacks Hill
Vector LimitedWarkworth South SubstationK19.315GHz Kraacks Hill
Vector LimitedWarkworth SubstationUHF459.36MHz Kraacks Hill
Vector LimitedWarkworth SubstationK19.343GHz Kraaks Hill
Vector LimitedWellsford SubstationKu12.877GHz Kraacks Hill
Vector LimitedWellsford SubstationK19.308GHz Kraacks Hill
Vital LimitedBrynderwynX8.089GHz Kraacks Hill
Vital LimitedBrynderwynX8.148GHz Kraacks Hill
Vital LimitedKraacks HillUHF429.73MHz Tamahunga
Vital LimitedKraacks HillUHF448.53MHz Tamahunga
Vital LimitedKraacks HillC7.777GHz Brynderwyn
Vital LimitedKraacks HillC7.837GHz Brynderwyn
Vital LimitedKraacks HillC7.926GHz Skytower Auckland
Vital LimitedKraacks HillC7.955GHz Skytower Auckland
Vital LimitedKraacks HillX11.015GHz Moirs Hill
Vital LimitedMoirs HillX11.545GHz Kraacks Hill
Vital LimitedSkytower AucklandX8.237GHz Kraacks Hill
Vital LimitedSkytower AucklandX8.267GHz Kraacks Hill
Vital LimitedTamahungaUHF424.71MHz Kraacks Hill
Vital LimitedTamahungaUHF443.53MHz Kraacks Hill

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Chorus New Zealand LimitedOnetangi (Waiheke)X8.178GHz Torbay
Chorus New Zealand LimitedTiritiri Matangi IslandUHF422.61MHz Torbay Radio
Chorus New Zealand LimitedTorbayC7.866GHz Onetangi (Waiheke)
Chorus New Zealand LimitedTorbay RadioUHF427.63MHz Tiritiri Matangi Island
Kordia LimitedPinehillK21.77GHz Torbay
Kordia LimitedTorbayK23.002GHz Pinehill
Spark New Zealand Trading LimitedMoirs HillKu12.891GHz Torbay
Spark New Zealand Trading LimitedOnetangi (Waiheke)X8.148GHz Torbay
Spark New Zealand Trading LimitedOnetangi (Waiheke)X8.237GHz Torbay
Spark New Zealand Trading LimitedTorbayC7.837GHz Onetangi (Waiheke)
Spark New Zealand Trading LimitedTorbayC7.926GHz Onetangi (Waiheke)
Spark New Zealand Trading LimitedTorbayKu13.157GHz Moirs Hill
Vital LimitedSkytower AucklandX11.035GHz Torbay Radio
Vital LimitedTorbay RadioX11.565GHz Skytower Auckland
