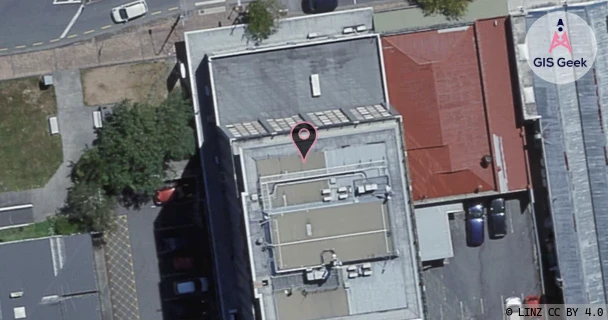

Two Degrees Networks Limited - (Wlg-045-006-A)[Upht]_Upper Hutt aerial image

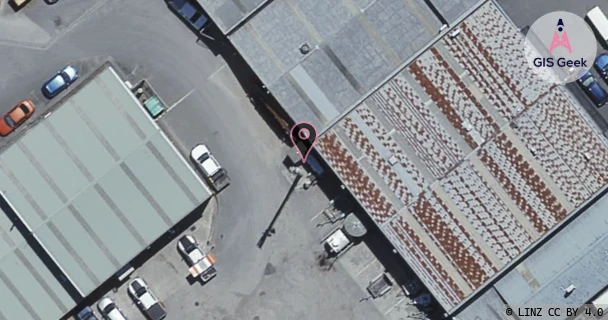

Two Degrees Networks Limited - (Wlg-045-006-A)[Upht]_Upper Hutt aerial image

Licence Overview

The link registered to Two Degrees Networks Limited is a V band link at 74.75GHz. It transmits from (Wlg-045-006-A)[Upht]_Upper Hutt, and is received at (Wlg-045-007-H)[Trnn]_Trentham North, a distance of 2km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Two Degrees Networks Limited5

Licence and Location Details

Licence
Frequency74.75GHz
Frequency Range73.625GHz - 75.875GHz
Channel Width2.25GHz
Channel Code80G11A
Power dBW(eirp)36
Emission2G25D7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance2km
RSM Licence ID424405
RSM Licence #420085
TX: (Wlg-045-006-A)[Upht]_Upper Hutt
AntennaERICSSON - 3/2 C 0.3 23/80 HPX/HPX 80GHZ
Antenna TypePARABOLIC (DUAL BAND)
EquipmentEricsson - 6352/3
RX: (Wlg-045-007-H)[Trnn]_Trentham North
AntennaERICSSON - 3/2 C 0.3 23/80 HPX/HPX 80GHZ
Antenna TypePARABOLIC (DUAL BAND)
EquipmentEricsson - 6352/3

Associated Licence

#1: (Wlg-045-007-H)[Trnn]_Trentham North
Frequency84.75GHz
Frequency Range83.625GHz - 85.875GHz
Channel Width2.25GHz
Channel Code80G11A#
Power dBW(eirp)36
Emission2G25D7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID424406
RSM Licence #420086

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Two Degrees Networks Limited(Wlg-045-004-D)[Eldn]_Elderslea NorthK23.184GHz (Wlg-045-006-A)[Upht]_Upper Hutt
Two Degrees Networks Limited(Wlg-045-004-D)[Eldn]_Elderslea NorthW82.5GHz (Wlg-045-006-A)[Upht]_Upper Hutt
Two Degrees Networks Limited(Wlg-045-006-A)[Upht]_Upper HuttK21.952GHz (Wlg-045-004-D)[Eldn]_Elderslea North
Two Degrees Networks Limited(Wlg-045-006-A)[Upht]_Upper HuttK22.176GHz (Wlg-045-007-H)[Trnn]_Trentham North
Two Degrees Networks Limited(Wlg-045-006-A)[Upht]_Upper HuttV72.5GHz (Wlg-045-004-D)[Eldn]_Elderslea North
Two Degrees Networks Limited(Wlg-045-007-H)[Trnn]_Trentham NorthK23.408GHz (Wlg-045-006-A)[Upht]_Upper Hutt
Two Degrees Networks Limited122C Whakatiki Street (Wlg-045-004-D)K22.764GHz 84-100 Main Street Upper Hutt (Wlg-045-006-A)
Two Degrees Networks Limited84-100 Main Street Upper Hutt (Wlg-045-006-A)K21.532GHz 122C Whakatiki Street (Wlg-045-004-D)

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Two Degrees Networks Limited(Wlg-045-006-A)[Upht]_Upper HuttK22.176GHz (Wlg-045-007-H)[Trnn]_Trentham North
Two Degrees Networks Limited(Wlg-045-007-H)[Trnn]_Trentham NorthK23.408GHz (Wlg-045-006-A)[Upht]_Upper Hutt
Two Degrees Networks Limited576D Fergusson Drive Upper Hutt (Wlg-045-007-H)K22.932GHz 84-100 Main Street Upper Hutt (Wlg-045-006-A)
Two Degrees Networks Limited84-100 Main Street Upper Hutt (Wlg-045-006-A)K21.7GHz 576D Fergusson Drive Upper Hutt (Wlg-045-007-H)
