Licence Overview
The link registered to Inspire Net Limited is a X band link at 11.585GHz. It transmits from North Range Road (Inspire), and is received at Paiwai, Mangamaire (Inspire), a distance of 11.2km.

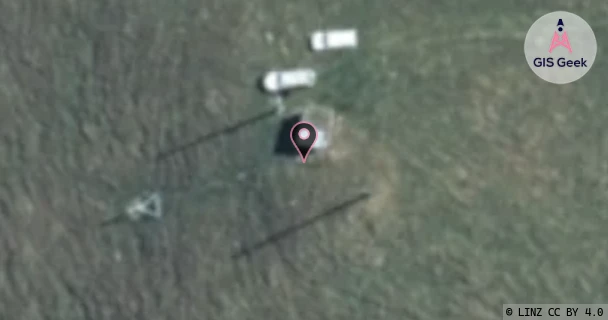

TX: GIS Geek | LINZ | GMaps | Street View

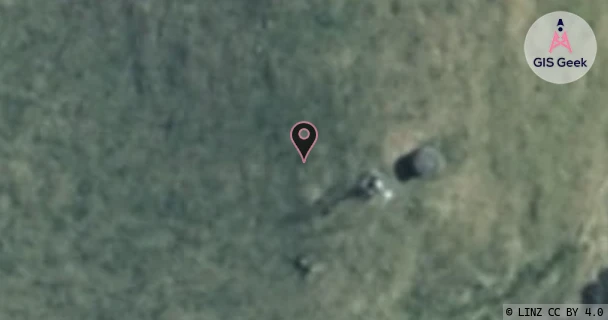

RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Inspire Net Limited | 2 |
Licence and Location Details
| TX: North Range Road (Inspire) | |
|---|---|
| Antenna | CERAGON - AM-3-11W-CR |
| Antenna Type | PARABOLIC Z BAND |
| Equipment | Ceragon - FIBEAIR IP-20C |
| RX: Paiwai, Mangamaire (Inspire) | |
|---|---|
| Antenna | CERAGON - AM-2-11W-CR |
| Antenna Type | PARABOLIC Z BAND |
| Equipment | Ceragon - FIBEAIR IP-20C |
Associated Licence
| #1: Paiwai, Mangamaire (Inspire) | |
|---|---|
| Frequency | 11.055GHz |
| Frequency Range | 11.035GHz - 11.075GHz |
| Channel Width | 40MHz |
| Channel Code | 11G10A |
| Power dBW(eirp) | 28.6 |
| Emission | 40M0D7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 425710 |
| RSM Licence # | 419863 |
