Point to Point Link: One New Zealand Group Limited - Frankton (Wkt-016-038-A)

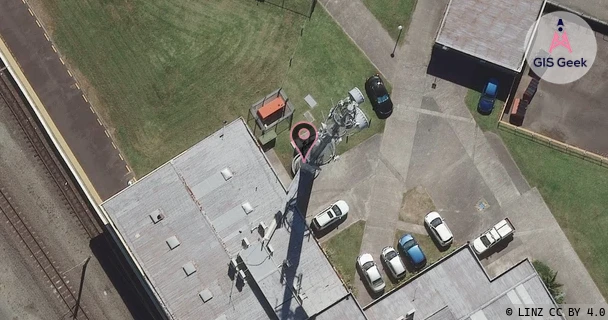

One New Zealand Group Limited - Frankton (Wkt-016-038-A) aerial image

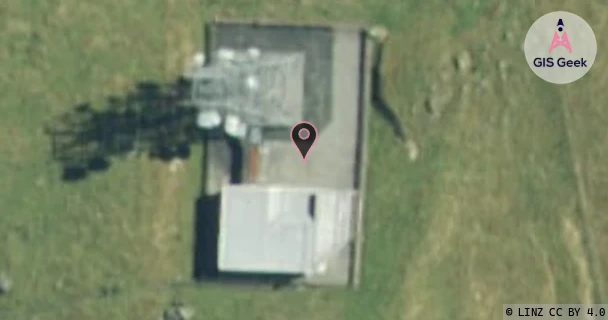

One New Zealand Group Limited - Frankton (Wkt-016-038-A) aerial image

Licence Overview

The link registered to One New Zealand Group Limited is a X band link at 8.133GHz. It transmits from Frankton (Wkt-016-038-A), and is received at Te Uku Via Van Houtte Road Raglan, a distance of 27.4km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Kordia Limited4
Royal New Zealand Coastguard Incorporated2

Licence and Location Details

Licence
Frequency8.133GHz
Frequency Range8.103GHz - 8.163GHz
Channel Width59.3MHz
Channel Code8GL34#
Power dBW(eirp)35.4
Emission56M0D7WET
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance27.4km
RSM Licence ID236742
RSM Licence #294946
TX: Frankton (Wkt-016-038-A)
AntennaCOMMSCOPE - VHLPX4-7W/E
Antenna TypePARABOLIC 7 & 8 GHZ BANDS
EquipmentSiae - AGS20
RX: Te Uku Via Van Houtte Road Raglan
AntennaCOMMSCOPE - VHLPX4-7W/E
Antenna TypePARABOLIC 7 & 8 GHZ BANDS
EquipmentSiae - AGS20

Associated Licence

#1: Te Uku Via Van Houtte Road Raglan
Frequency7.822GHz
Frequency Range7.792GHz - 7.851GHz
Channel Width59.3MHz
Channel Code8GL34
Power dBW(eirp)35.4
Emission56M0D7WET
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID236741
RSM Licence #294945

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Kordia Limited25 Te ArohaC5.975GHz Hamilton Rail
Kordia Limited6 Clow Place, HamiltonK23.142GHz Hamilton Rail
Kordia LimitedHamilton RailC6.227GHz 25 Te Aroha
Kordia LimitedHamilton RailX11.405GHz Open Country - Horotiu
Kordia LimitedHamilton RailK21.91GHz 6 Clow Place, Hamilton
Kordia LimitedOpen Country - HorotiuX10.875GHz Hamilton Rail
Royal New Zealand Coastguard IncorporatedHamilton RailUHF426.48MHz Te Uku
Royal New Zealand Coastguard IncorporatedHamilton RailUHF458.99MHz Karioi
Royal New Zealand Coastguard IncorporatedTe UkuUHF421.46MHz Hamilton Rail

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Chorus New Zealand LimitedHamilton CaxVHF168.9MHz Te Uku
Chorus New Zealand LimitedPiripiri RepeaterC6.46GHz Te Uku Via Van Houtte Road Raglan
Chorus New Zealand LimitedTe UkuVHF162.95MHz Hamilton Cax
Chorus New Zealand LimitedTe Uku Via Van Houtte Road RaglanC6.8GHz Piripiri Repeater
Eonfibre LimitedTe Uku Via Van Houtte Road RaglanK21.364GHz Te Uku Wind Farm 192 Van Houtte Road Raglan
Eonfibre LimitedTe Uku Wind Farm 192 Van Houtte Road RaglanK22.596GHz Te Uku Via Van Houtte Road Raglan
Vital LimitedHamilton CaxC7.384GHz Te Uku
Vital LimitedTe UkuC7.223GHz Hamilton Cax
Wel Networks LimitedLatham Court SubstationUHF806.75MHz Te Uku
Wel Networks LimitedTe PuroaX11.565GHz Te Uku Via Van Houtte Road Raglan
Wel Networks LimitedTe UkuUHF851.75MHz Latham Court Substation
Wel Networks LimitedTe Uku Via Van Houtte Road RaglanX11.035GHz Te Puroa
Wel Networks LimitedTe Uku Via Van Houtte Road RaglanX11.245GHz Waitetuna (Wel)
Wel Networks LimitedTe Uku Via Van Houtte Road RaglanX11.325GHz Waitetuna (Wel)
Wel Networks LimitedTe Uku Via Van Houtte Road RaglanK21.252GHz Waitetuna (Wel)
Wel Networks LimitedTe Uku Via Van Houtte Road RaglanK21.308GHz Waitetuna (Wel)
Wel Networks LimitedWaitetuna (Wel)X10.715GHz Te Uku Via Van Houtte Road Raglan
Wel Networks LimitedWaitetuna (Wel)X10.795GHz Te Uku Via Van Houtte Road Raglan
Wel Networks LimitedWaitetuna (Wel)K22.484GHz Te Uku Via Van Houtte Road Raglan
Wel Networks LimitedWaitetuna (Wel)K22.54GHz Te Uku Via Van Houtte Road Raglan
