Licence Overview

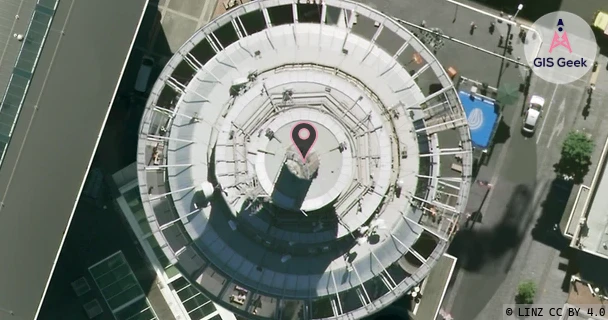

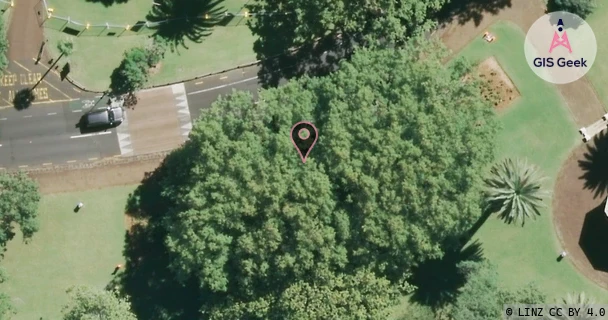

The link registered to Two Degrees Networks Limited is a V band link at 74.5GHz. It transmits from (Cow-000-012)_Red_Bull_Cow, and is received at Sky Tower (Tower Centre), a distance of 1.64km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
Licence and Location Details
| TX: (Cow-000-012)_Red_Bull_Cow | |
|---|---|
| Antenna | ERICSSON - ANT2 C 0.3 80 HPX |
| Antenna Type | PARABOLIC 80GHZ |
| Equipment | Ericsson - 6352/3 |
| RX: Sky Tower (Tower Centre) | |
|---|---|
| Antenna | ERICSSON - ANT2 C 0.3 80 HPX |
| Antenna Type | PARABOLIC 80GHZ |
| Equipment | Ericsson - 6352/3 |
Associated Licence
| #1: Sky Tower (Tower Centre) | |
|---|---|
| Frequency | 84.5GHz |
| Frequency Range | 83.375GHz - 85.625GHz |
| Channel Width | 2.25GHz |
| Channel Code | 80G10A# |
| Power dBW(eirp) | 38 |
| Emission | 2G25D7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 423579 |
| RSM Licence # | 416433 |
Additional Links From RX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Eonfibre Limited | Cow Coyle Park Point Chevalier (Onenz Big Gay Out... | K | 22.288GHz | Sky Tower (Tower Centre) |
| Eonfibre Limited | Sky Tower (Tower Centre) | K | 23.408GHz | Sw Corner Of North Oval 55-85 Mountain Road Epsom... |
| Eonfibre Limited | Sky Tower (Tower Centre) | K | 23.52GHz | Cow Coyle Park Point Chevalier (Onenz Big Gay Out... |
| Eonfibre Limited | Sky Tower (Tower Centre) | W | 82.25GHz | Te Wero Rwc |
| Eonfibre Limited | Sw Corner Of North Oval 55-85 Mountain Road Epsom... | K | 22.176GHz | Sky Tower (Tower Centre) |
| Eonfibre Limited | Te Wero Rwc | V | 72.25GHz | Sky Tower (Tower Centre) |
| Two Degrees Networks Limited | Gate 2 Carrington Road (Akl-007-008-A) | Ku | 15.159GHz | Sky Tower |
| Two Degrees Networks Limited | Gate 2 Carrington Road (Akl-007-008-A) | Ku | 15.215GHz | Sky Tower |
| Two Degrees Networks Limited | Gate 2 Carrington Road (Akl-007-008-A) | Ku | 15.299GHz | Sky Tower |
| Two Degrees Networks Limited | Sky Tower | Ku | 14.515GHz | Gate 2 Carrington Road (Akl-007-008-A) |
| Two Degrees Networks Limited | Sky Tower | Ku | 14.571GHz | Gate 2 Carrington Road (Akl-007-008-A) |
| Two Degrees Networks Limited | Sky Tower | Ku | 14.655GHz | Gate 2 Carrington Road (Akl-007-008-A) |
