Licence Overview
The link registered to Chorus New Zealand Limited is a Ku band link at 12.793GHz. It transmits from Mt Freeth, and is received at Picton, a distance of 2.6km.
TX: GIS Geek | LINZ | GMaps | Street View

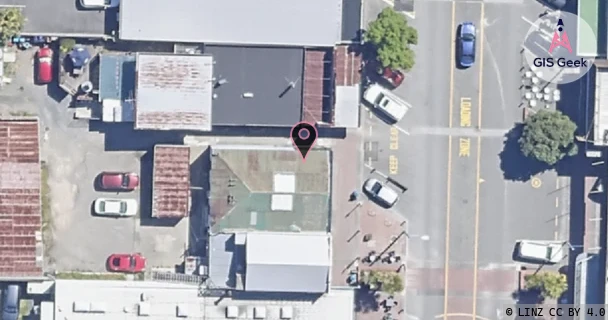

RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Johnston Dick & Associates Limited | 2 |
| Tait Systems Nz Limited | 2 |
| Two Degrees Networks Limited | 2 |
| Vital Limited | 2 |
Licence and Location Details
| TX: Mt Freeth | |
|---|---|
| Antenna | ERICSSON - 600MM |
| Antenna Type | PARABOLIC 13 GHZ BAND |
| Equipment | Ericsson - MINI-LINK 13-E |
| RX: Picton | |
|---|---|
| Antenna | ERICSSON - 600MM |
| Antenna Type | PARABOLIC 13 GHZ BAND |
| Equipment | Ericsson - MINI-LINK 13-E |
Associated Licence
| #1: Picton | |
|---|---|
| Frequency | 13.059GHz |
| Frequency Range | 13.045GHz - 13.073GHz |
| Channel Width | 28MHz |
| Channel Code | 13G2# |
| Power dBW(eirp) | 29 |
| Emission | 28M0G2DDN |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 75458 |
| RSM Licence # | 173031 |
Additional Links From TX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Johnston Dick & Associates Limited | Picton | X | 10.511GHz | Rahotia |
| Johnston Dick & Associates Limited | Rahotia | X | 10.602GHz | Picton |
| Tait Systems Nz Limited | Kahikatea | Ku | 14.536GHz | Mt Freeth |
| Tait Systems Nz Limited | Mt Freeth | Ku | 15.18GHz | Kahikatea |
| Two Degrees Networks Limited | Chorus Exchange Sw Corner Waikawa Road And Welling... | K | 19.205GHz | Mt Freeth (Mbn-053-007-B) |
| Two Degrees Networks Limited | Mt Freeth (Mbn-053-007-B) | K | 18.195GHz | Chorus Exchange Sw Corner Waikawa Road And Welling... |
| Vital Limited | Mt Freeth | UHF | 420.09MHz | Rahotia |
| Vital Limited | Rahotia | UHF | 425.1MHz | Mt Freeth |
