Licence Overview
The link registered to Chorus New Zealand Limited is a C band link at 7.491GHz. It transmits from Hundalee, and is received at Random Spur, a distance of 39.42km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
Licence and Location Details

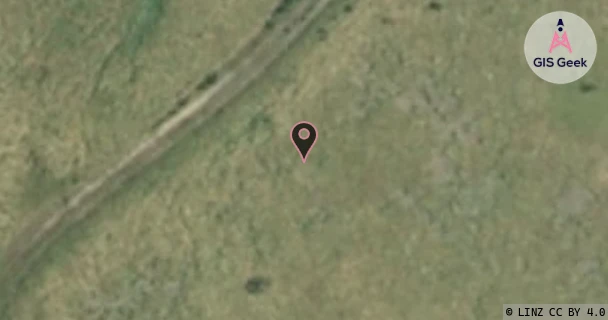

| TX: Hundalee | |
|---|---|
| Antenna | ERICSSON - UKY 210 40/SC11 |
| Antenna Type | PARABOLIC 7/8 GHZ BANDS |
| Equipment | Ericsson - MINI-LINK 7-E |

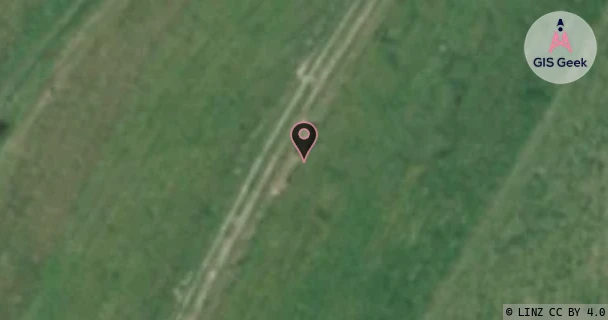

| RX: Random Spur | |
|---|---|
| Antenna | ERICSSON - UKY 210 50/SC11 |
| Antenna Type | PARABOLIC 7/8 GHZ BANDS |
| Equipment | Ericsson - MINI-LINK 7-E |
Associated Licence
| #1: Random Spur | |
|---|---|
| Frequency | 7.652GHz |
| Frequency Range | 7.638GHz - 7.666GHz |
| Channel Width | 28MHz |
| Channel Code | 7GU10A# |
| Power dBW(eirp) | 43 |
| Emission | 28M6G7W |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 139717 |
| RSM Licence # | 224344 |
