Licence Overview
The link registered to Eonfibre Limited is a K band link at 18.58GHz. It transmits from State Highway 8 Tekapo, and is received at Mt John, a distance of 2.53km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Eonfibre Limited | 2 |
Licence and Location Details

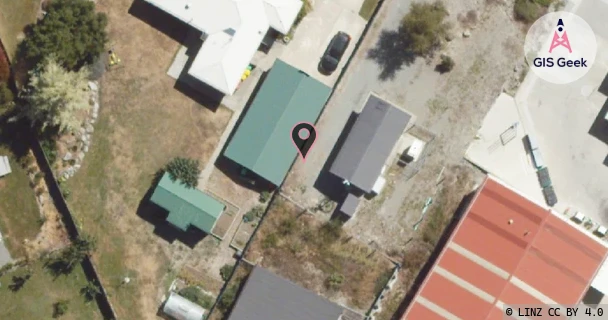

| TX: State Highway 8 Tekapo | |
|---|---|
| Antenna | COMMSCOPE - VHLPX1-18/F |
| Antenna Type | PARABOLIC 18 GHZ |
| Equipment | Nec - IPASOLINK VR IAP3 |

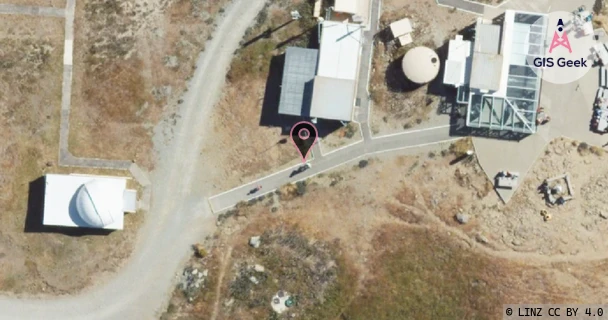

| RX: Mt John | |
|---|---|
| Antenna | COMMSCOPE - VHLPX2-18/D |
| Antenna Type | PARABOLIC HIGH PERFORMANCE |
| Equipment | Nec - IPASOLINK VR IAP3 |
Associated Licence
| #1: Mt John | |
|---|---|
| Frequency | 19.59GHz |
| Frequency Range | 19.535GHz - 19.645GHz |
| Channel Width | 110MHz |
| Channel Code | 18G8A# |
| Power dBW(eirp) | 26 |
| Emission | 110MD7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 426154 |
| RSM Licence # | 420199 |
Additional Links From TX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Eonfibre Limited | Mt John | K | 19.48GHz | State Highway 8 Tekapo |
| Eonfibre Limited | Mt John | K | 19.59GHz | State Highway 8 Tekapo |
| Eonfibre Limited | Mt John | K | 19.59GHz | State Highway 8 Tekapo |
| Eonfibre Limited | State Highway 8 Tekapo | K | 18.47GHz | Mt John |
| Eonfibre Limited | State Highway 8 Tekapo | K | 18.58GHz | Mt John |
| Eonfibre Limited | State Highway 8 Tekapo | K | 18.58GHz | Mt John |
Additional Links From RX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Eonfibre Limited | Mt John | X | 11.405GHz | Mt Mary(High) |
| Eonfibre Limited | Mt John | X | 11.405GHz | Mt Mary(High) |
| Eonfibre Limited | Mt John | X | 11.525GHz | Mt Mary(High) |
| Eonfibre Limited | Mt John | K | 19.48GHz | State Highway 8 Tekapo |
| Eonfibre Limited | Mt John | K | 19.59GHz | State Highway 8 Tekapo |
| Eonfibre Limited | Mt John | K | 19.59GHz | State Highway 8 Tekapo |
| Eonfibre Limited | Mt Mary(High) | X | 10.875GHz | Mt John |
| Eonfibre Limited | Mt Mary(High) | X | 10.875GHz | Mt John |
| Eonfibre Limited | Mt Mary(High) | X | 10.995GHz | Mt John |
| Eonfibre Limited | State Highway 8 Tekapo | K | 18.47GHz | Mt John |
| Eonfibre Limited | State Highway 8 Tekapo | K | 18.58GHz | Mt John |
| Eonfibre Limited | State Highway 8 Tekapo | K | 18.58GHz | Mt John |
