Licence Overview

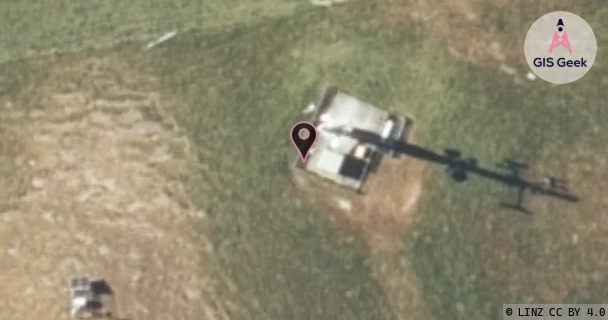

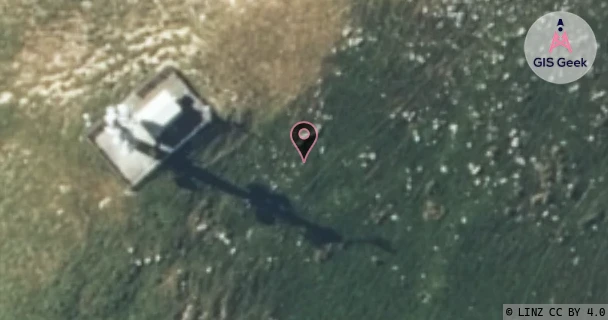

The link registered to One New Zealand Group Limited is a K band link at 18.443GHz. It transmits from Weld Pass, and is received at Star Hill (Vf Seddon S2Sdd), a distance of 10.45km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Brian Fm Limited | 2 |
| Chorus New Zealand Limited | 2 |
| Eonfibre Limited | 5 |
Licence and Location Details
| TX: Weld Pass | |
|---|---|
| Antenna | ANDREW - VHPX4-180A |
| Antenna Type | PARABOLIC 18 GHZ BAND |
| Equipment | Ericsson - MINI-LINK TN |
| RX: Star Hill (Vf Seddon S2Sdd) | |
|---|---|
| Antenna | ANDREW - VHPX4-180A |
| Antenna Type | PARABOLIC 18 GHZ BAND |
| Equipment | Ericsson - MINI-LINK TN |
Associated Licence
| #1: Star Hill (Vf Seddon S2Sdd) | |
|---|---|
| Frequency | 19.453GHz |
| Frequency Range | 19.439GHz - 19.466GHz |
| Channel Width | 27.5MHz |
| Channel Code | 18G7C3# |
| Power dBW(eirp) | 30.7 |
| Emission | 27M5G7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 136375 |
| RSM Licence # | 222485 |
Additional Links From TX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Brian Fm Limited | Tuamarina | UHF | 849.75MHz | Weld Pass |
| Brian Fm Limited | Weld Pass | UHF | 928.25MHz | Stevens Hill |
| Chorus New Zealand Limited | Jamies Knob M/W | K | 21.462GHz | Weld Pass |
| Chorus New Zealand Limited | Weld Pass | K | 22.694GHz | Jamies Knob M/W |
| Eonfibre Limited | Kahikatea | X | 8.252GHz | Weld Pass |
| Eonfibre Limited | Parties Road | X | 11.325GHz | Weld Pass |
| Eonfibre Limited | Star Hill (Vf Seddon S2Sdd) | X | 11.245GHz | Weld Pass |
| Eonfibre Limited | Star Hill (Vf Seddon S2Sdd) | X | 11.605GHz | Weld Pass |
| Eonfibre Limited | Ward | X | 8.133GHz | Weld Pass |
| Eonfibre Limited | Weld Pass | C | 7.822GHz | Ward |
| Eonfibre Limited | Weld Pass | C | 7.94GHz | Kahikatea |
| Eonfibre Limited | Weld Pass | X | 10.715GHz | Star Hill (Vf Seddon S2Sdd) |
| Eonfibre Limited | Weld Pass | X | 10.795GHz | Parties Road |
| Eonfibre Limited | Weld Pass | X | 11.075GHz | Star Hill (Vf Seddon S2Sdd) |
Additional Links From RX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Eonfibre Limited | South Of Naumai Homestead Taimate Road Ward (Vf S2... | X | 10.995GHz | Star Hill (Vf Seddon S2Sdd) |
| Eonfibre Limited | Star Hill (Vf Seddon S2Sdd) | X | 11.245GHz | Weld Pass |
| Eonfibre Limited | Star Hill (Vf Seddon S2Sdd) | X | 11.525GHz | South Of Naumai Homestead Taimate Road Ward (Vf S2... |
| Eonfibre Limited | Star Hill (Vf Seddon S2Sdd) | X | 11.605GHz | Weld Pass |
| Eonfibre Limited | Weld Pass | X | 10.715GHz | Star Hill (Vf Seddon S2Sdd) |
| Eonfibre Limited | Weld Pass | X | 11.075GHz | Star Hill (Vf Seddon S2Sdd) |
| Two Degrees Networks Limited | 4 Richmond Street Seddon_[Tx_Only](Mbn-053-018-A) | K | 18.14GHz | Star Hill Off Marama Road Seddon_[Sedn](Mbn-053-01... |
| Two Degrees Networks Limited | 4 Richmond Street Seddon_[Tx_Only](Mbn-053-018-A) | K | 18.195GHz | Star Hill Off Marama Road Seddon_[Sedn](Mbn-053-01... |
| Two Degrees Networks Limited | 4 Richmond Street Seddon_[Tx_Only](Mbn-053-018-A) | V | 74.75GHz | Star Hill Off Marama Road Seddon_[Sedn](Mbn-053-01... |
| Two Degrees Networks Limited | Star Hill Off Marama Road Seddon_[Sedn](Mbn-053-01... | K | 19.15GHz | 4 Richmond Street Seddon_[Tx_Only](Mbn-053-018-A) |
| Two Degrees Networks Limited | Star Hill Off Marama Road Seddon_[Sedn](Mbn-053-01... | K | 19.205GHz | 4 Richmond Street Seddon_[Tx_Only](Mbn-053-018-A) |
| Two Degrees Networks Limited | Star Hill Off Marama Road Seddon_[Sedn](Mbn-053-01... | W | 84.75GHz | 4 Richmond Street Seddon_[Tx_Only](Mbn-053-018-A) |
