Licence Overview
The link registered to One New Zealand Group Limited is a V band link at 72.5GHz. It transmits from 567 State Highway 33 Okere Falls (Vf C6Okf), and is received at Pukenui Hill Tikitere (Vf Lake Rotoiti C6Lro), a distance of 5.38km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Eonfibre Limited | 3 |
| Two Degrees Networks Limited | 2 |
Licence and Location Details

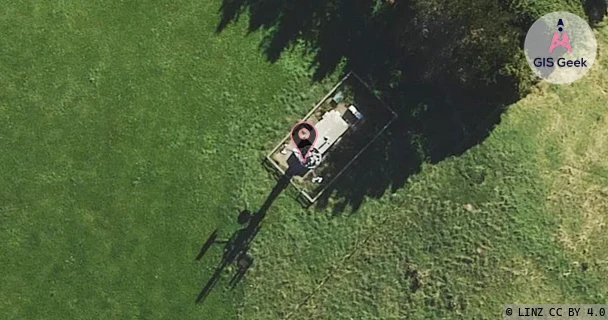

| TX: 567 State Highway 33 Okere Falls (Vf C6Okf) | |
|---|---|
| Antenna | ERICSSON - 3/2 C 0.6 13/80 HPX 80GHZ |
| Antenna Type | PARABOLIC DUAL BAND 13GHZ/80GHZ |
| Equipment | Ericsson - 6352 ODU |

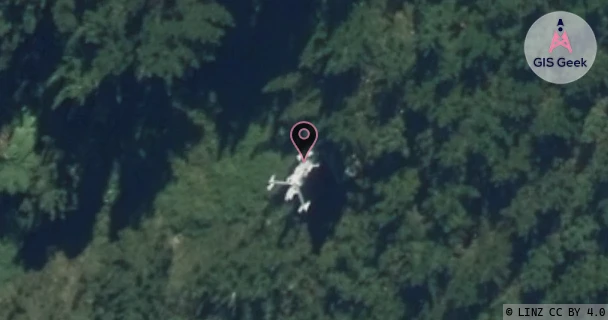

| RX: Pukenui Hill Tikitere (Vf Lake Rotoiti C6Lro) | |
|---|---|
| Antenna | ERICSSON - 3/2 C 0.6 13/80 HPX 80GHZ |
| Antenna Type | PARABOLIC DUAL BAND 13GHZ/80GHZ |
| Equipment | Ericsson - 6352 ODU |
Associated Licence
| #1: Pukenui Hill Tikitere (Vf Lake Rotoiti C6Lro) | |
|---|---|
| Frequency | 82.5GHz |
| Frequency Range | 81.375GHz - 83.625GHz |
| Channel Width | 2.25GHz |
| Channel Code | 80G2A# |
| Power dBW(eirp) | 42 |
| Emission | 2G25F1XXN |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 239067 |
| RSM Licence # | 296884 |
Additional Links From TX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Eonfibre Limited | 567 State Highway 33 Okere Falls (Vf C6Okf) | X | 11.285GHz | Pukenui Hill Tikitere (Vf Lake Rotoiti C6Lro) |
| Eonfibre Limited | 567 State Highway 33 Okere Falls (Vf C6Okf) | Ku | 12.947GHz | Ngongotaha |
| Eonfibre Limited | Ngongotaha | Ku | 13.213GHz | 567 State Highway 33 Okere Falls (Vf C6Okf) |
| Eonfibre Limited | Pukenui Hill Tikitere (Vf Lake Rotoiti C6Lro) | X | 10.755GHz | 567 State Highway 33 Okere Falls (Vf C6Okf) |
| Two Degrees Networks Limited | 567 State Highway 33 Hiapo Summit-Rotorua (Bop-024... | X | 11.445GHz | Pukepoto Kordia Colo (Bop-024-017-A) |
| Two Degrees Networks Limited | 567 State Highway 33 Hiapo Summit-Rotorua (Bop-024... | X | 11.525GHz | Pukepoto Kordia Colo (Bop-024-017-A) |
| Two Degrees Networks Limited | Pukepoto Kordia Colo (Bop-024-017-A) | X | 10.915GHz | 567 State Highway 33 Hiapo Summit-Rotorua (Bop-024... |
| Two Degrees Networks Limited | Pukepoto Kordia Colo (Bop-024-017-A) | X | 10.995GHz | 567 State Highway 33 Hiapo Summit-Rotorua (Bop-024... |
