Point to Point Link: Two Degrees Networks Limited - (Otg-069-004-A)[Sprv]_Springvale

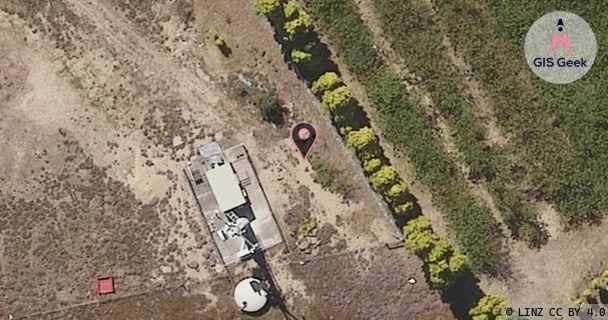

Two Degrees Networks Limited - (Otg-069-004-A)[Sprv]_Springvale aerial image

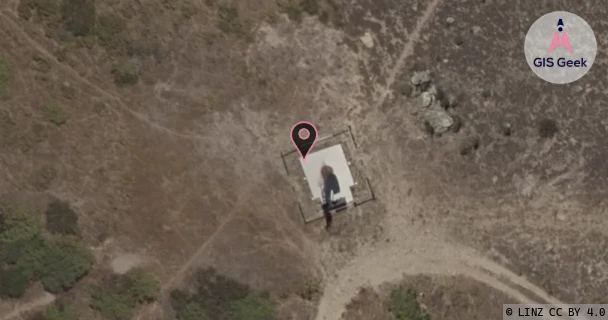

Two Degrees Networks Limited - (Otg-069-004-A)[Sprv]_Springvale aerial image

Licence Overview

The link registered to Two Degrees Networks Limited is a X band link at 11.445GHz. It transmits from (Otg-069-004-A)[Sprv]_Springvale, and is received at (Otg-069-003-A)[Clyd]_Clyde, a distance of 10.33km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

Licence and Location Details

Licence
Frequency11.445GHz
Frequency Range11.405GHz - 11.485GHz
Channel Width80MHz
Channel Code11G3W#
Power dBW(eirp)32
Emission80M0D7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance10.33km
RSM Licence ID421606
RSM Licence #416266
TX: (Otg-069-004-A)[Sprv]_Springvale
AntennaERICSSON - ANT3 C 1.2 10/11 HPX
Antenna TypePARABOLIC, 1.2M, 11GHZ, DUAL POLARISATION
EquipmentEricsson - 6365
RX: (Otg-069-003-A)[Clyd]_Clyde
AntennaERICSSON - ANT3 C 1.2 10/11 HPX
Antenna TypePARABOLIC, 1.2M, 11GHZ, DUAL POLARISATION
EquipmentEricsson - 6365

Associated Licence

#1: (Otg-069-003-A)[Clyd]_Clyde
Frequency10.915GHz
Frequency Range10.875GHz - 10.955GHz
Channel Width80MHz
Channel Code11G3W
Power dBW(eirp)32
Emission80M0D7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID421607
RSM Licence #416268

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Two Degrees Networks LimitedClyde (Otg-069-003-A)C7.195GHz Little Mount Ida (Otg-069-011-A)
Two Degrees Networks LimitedClyde (Otg-069-003-A)X10.715GHz Springvale (Otg-069-004-A)
Two Degrees Networks LimitedLittle Mount Ida (Otg-069-011-A)C7.355GHz Clyde (Otg-069-003-A)
Two Degrees Networks LimitedSpringvale (Otg-069-004-A)X11.245GHz Clyde (Otg-069-003-A)
