Licence Overview

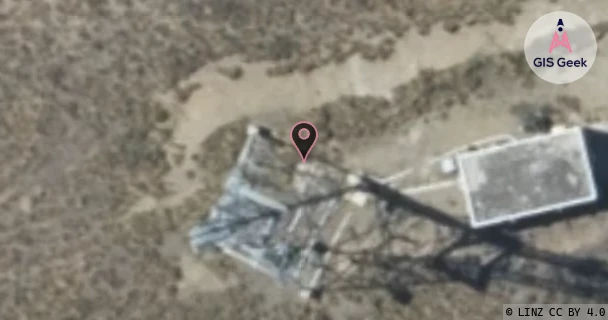

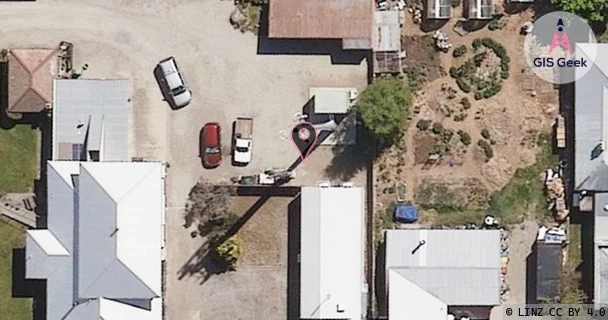

The link registered to Two Degrees Networks Limited is a C band link at 7.763GHz. It transmits from Little Mount Ida (Otg-069-011-A), and is received at (Otg-069-032-A)[Ranx]_Ranfurly_Exchange, a distance of 19.41km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Two Degrees Networks Limited | 3 |
| Vital Limited | 2 |
Licence and Location Details
| TX: Little Mount Ida (Otg-069-011-A) | |
|---|---|
| Antenna | ERICSSON - ANT3/3 C 1.2 7/8/18 HPX/HPX 7/8GHZ |
| Antenna Type | PARABOLIC DUAL BAND |
| Equipment | Ericsson - 6365 |
| RX: (Otg-069-032-A)[Ranx]_Ranfurly_Exchange | |
|---|---|
| Antenna | ERICSSON - ANT3/3 C 1.2 7/8/18 HPX/HPX 7/8GHZ |
| Antenna Type | PARABOLIC DUAL BAND |
| Equipment | Ericsson - 6365 |
Associated Licence
| #1: (Otg-069-032-A)[Ranx]_Ranfurly_Exchange | |
|---|---|
| Frequency | 8.074GHz |
| Frequency Range | 8.044GHz - 8.103GHz |
| Channel Width | 59.3MHz |
| Channel Code | 8GL12# |
| Power dBW(eirp) | 34 |
| Emission | 59M3D7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 423262 |
| RSM Licence # | 417400 |
Additional Links From TX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Two Degrees Networks Limited | (Otg-069-032-A)[Ranx]_Ranfurly_Exchange | K | 19.48GHz | Little Mount Ida (Otg-069-011-A) |
| Two Degrees Networks Limited | Clyde (Otg-069-003-A) | C | 7.195GHz | Little Mount Ida (Otg-069-011-A) |
| Two Degrees Networks Limited | Little Mount Ida (Otg-069-011-A) | C | 7.355GHz | Clyde (Otg-069-003-A) |
| Two Degrees Networks Limited | Little Mount Ida (Otg-069-011-A) | K | 18.47GHz | (Otg-069-032-A)[Ranx]_Ranfurly_Exchange |
| Vital Limited | Little Mt Ida | C | 7.384GHz | Waikerikeri |
| Vital Limited | Little Mt Ida | C | 7.411GHz | Waikerikeri |
| Vital Limited | Waikerikeri | C | 7.223GHz | Little Mt Ida |
| Vital Limited | Waikerikeri | C | 7.251GHz | Little Mt Ida |
Additional Links From RX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Spark New Zealand Trading Limited | North Rough Ridge | Ku | 12.947GHz | Ranfurly |
| Spark New Zealand Trading Limited | Ranfurly | Ku | 13.213GHz | North Rough Ridge |
| Two Degrees Networks Limited | (Otg-069-032-A)[Ranx]_Ranfurly_Exchange | K | 19.48GHz | Little Mount Ida (Otg-069-011-A) |
| Two Degrees Networks Limited | Little Mount Ida (Otg-069-011-A) | K | 18.47GHz | (Otg-069-032-A)[Ranx]_Ranfurly_Exchange |
