Point to Point Link: South Waikato District Council - Tirau Reservoir

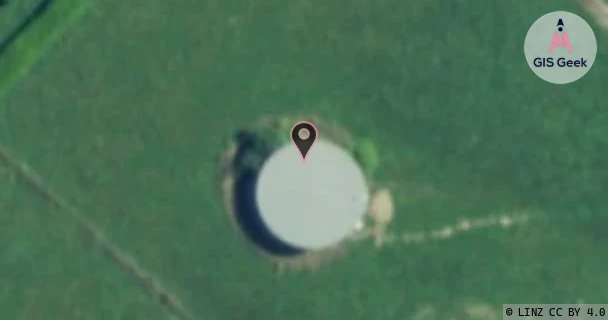

South Waikato District Council - Tirau Reservoir aerial image
South Waikato District Council - Tirau Reservoir aerial image

Licence Overview

The link registered to South Waikato District Council is a UHF band link at 459.05MHz. It transmits from Tirau Reservoir, and is received at Tokoroa Base, a distance of 27.05km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
South Waikato District Council8

Licence and Location Details

Licence
Frequency459.05MHz
Frequency Range459.038MHz - 459.063MHz
Channel Width25kHz
Channel CodeJ16A#
Power dBW(eirp)14
Emission16K0G9WWF
Licence TypeFixed Bi-directional Point-to-Multipoint
Commenced

-

Licence Last Updated

-

Link Distance27.05km
RSM Licence ID423114
RSM Licence #215761
TX: Tirau Reservoir
AntennaRFI - RDA6
Antenna Type6 ELEMENT YAGI
EquipmentTait - T555-21
RX: Tokoroa Base
AntennaMORROW - AU7EL
Antenna Type7 ELEMENT LOG PERIODIC YAGI
EquipmentTait -

Associated Licence

#1: Tokoroa Base
Frequency454.04MHz
Frequency Range454.025MHz - 454.05MHz
Channel Width25kHz
Channel CodeJ16A
Power dBW(eirp)14
Emission16K0G9WWF
Licence TypeFixed Bi-directional Point-to-Multipoint
Commenced

-

Licence Last Updated

-

RSM Licence ID423110
RSM Licence #215759

Additional Links From TX Location

Client TX Location Band Frequency RX Location
South Waikato District CouncilGrey StreetUHF454.04MHz Tirau Reservoir
South Waikato District CouncilPutaruru HeadworksUHF454.04MHz Tirau Reservoir
South Waikato District CouncilPutaruru PondsUHF454.04MHz Tirau Reservoir
South Waikato District CouncilPutaruru ReservoirUHF454.04MHz Tirau Reservoir
South Waikato District CouncilTirau DepotUHF454.04MHz Tirau Reservoir
South Waikato District CouncilTirau ReservoirUHF459.05MHzMultiple: Tokoroa Base, Putaruru Headworks, Grey Street, Tirau Stp, Putaruru Reservoir, Tirau Depot, Putaruru Ponds
South Waikato District CouncilTirau StpUHF454.04MHz Tirau Reservoir
South Waikato District CouncilTokoroa BaseUHF454.04MHz Tirau Reservoir

Additional Links From RX Location

Client TX Location Band Frequency RX Location
South Waikato District CouncilBaird RoadUHF459.05MHz Tokoroa Base
South Waikato District CouncilTirau ReservoirUHF459.05MHzMultiple: Tokoroa Base, Putaruru Headworks, Grey Street, Tirau Stp, Putaruru Reservoir, Tirau Depot, Putaruru Ponds
South Waikato District CouncilTokoroa BaseUHF454.04MHz Tirau Reservoir
