Point to Point Link: Powernet Ltd - Twinlaw

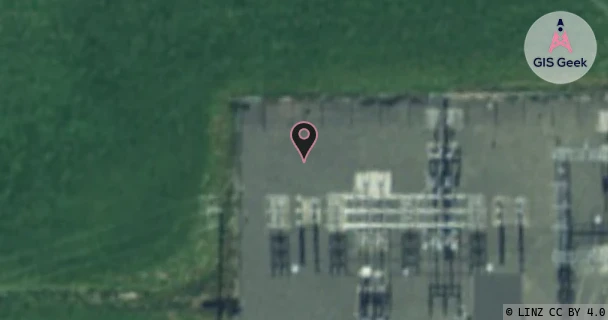

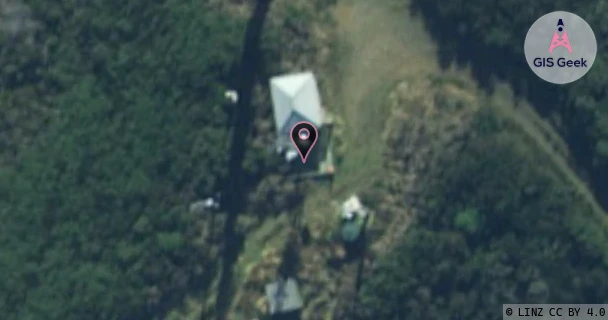

Powernet Ltd - Twinlaw aerial image
Powernet Ltd - Twinlaw aerial image

Licence Overview

The link registered to Powernet Ltd is a UHF band link at 454.22MHz. It transmits from Twinlaw, and is received at Heddon Bush Substation, a distance of 21.35km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Powernet Limited8

Licence and Location Details

Licence
Frequency454.22MHz
Frequency Range454.213MHz - 454.225MHz
Channel Width12.5kHz
Channel CodeJNB48
Power dBW(eirp)-3
Emission9K30F1DXN
Licence TypeFixed <1 GHz; BW <=50 kHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance21.35km
RSM Licence ID64094
RSM Licence #166563
TX: Twinlaw
AntennaHI-TEC - CRU8
Antenna TypeCORNER REFLECTOR UHF
EquipmentDataradio - T-96SR/TBASE R
RX: Heddon Bush Substation
AntennaHI-TEC - CRU8
Antenna TypeCORNER REFLECTOR UHF
EquipmentDataradio - T-96SR/TBASE R

Associated Licence

#1: Heddon Bush Substation
Frequency459.26MHz
Frequency Range459.25MHz - 459.262MHz
Channel Width12.5kHz
Channel CodeJNB48#
Power dBW(eirp)-3
Emission9K30F1DXN
Licence TypeFixed <1 GHz; BW <=50 kHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID64093
RSM Licence #166562

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Powernet Limited251 Racecourse Road, InvercargillX8.237GHz Twinlaw Powernet
Powernet LimitedHeddon Bush SubstationKu13.143GHz Twinlaw Powernet
Powernet LimitedMid DomeX8.237GHz Twinlaw Powernet
Powernet LimitedMonowaiUHF442.94MHz Twinlaw
Powernet LimitedOhai SubstationUHF424.76MHz Twinlaw
Powernet LimitedOrawia SubstationKu13.031GHz Twinlaw Powernet
Powernet LimitedTwinlawUHF429.78MHz Ohai Substation
Powernet LimitedTwinlawUHF447.94MHz Monowai
Powernet LimitedTwinlaw PowernetC7.926GHz Mid Dome
Powernet LimitedTwinlaw PowernetC7.926GHz 251 Racecourse Road, Invercargill
Powernet LimitedTwinlaw PowernetKu12.765GHz Orawia Substation
Powernet LimitedTwinlaw PowernetKu12.877GHz Heddon Bush Substation

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Powernet LimitedHeddon Bush SubstationC7.896GHz Winton
Powernet LimitedHeddon Bush SubstationKu13.143GHz Twinlaw Powernet
Powernet LimitedTwinlaw PowernetKu12.877GHz Heddon Bush Substation
Powernet LimitedWintonX8.207GHz Heddon Bush Substation
