Point to Point Link: Kiwirail - Waiouru Rail Station

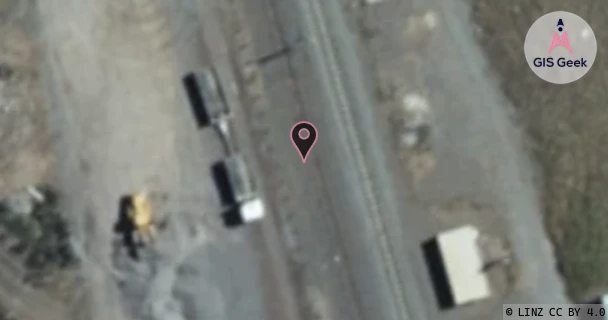

Kiwirail - Waiouru Rail Station aerial image
Kiwirail - Waiouru Rail Station aerial image

Licence Overview

The link registered to Kiwirail is a UHF band link at 854.25MHz. It transmits from Waiouru Rail Station, and is received at Raetihi, a distance of 34.85km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

Licence and Location Details

Licence
Frequency854.25MHz
Frequency Range854MHz - 854.5MHz
Channel Width500kHz
Channel CodeKK7#
Power dBW(eirp)20
Emission500KF7WWT
Licence TypeFixed < 1GHz; BW >50kHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance34.85km
RSM Licence ID126780
RSM Licence #216622
TX: Waiouru Rail Station
AntennaKATHREIN - AP13-850/047
Antenna TypePANEL
Equipment -
RX: Raetihi
AntennaKATHREIN - AP13-850/047
Antenna TypePANEL
Equipment4Rf - APRISA XE 800

Associated Licence

#1: Raetihi
Frequency809.25MHz
Frequency Range809MHz - 809.5MHz
Channel Width500kHz
Channel CodeKK7
Power dBW(eirp)20
Emission500KG7WWX
Licence TypeFixed < 1GHz; BW >50kHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID126779
RSM Licence #216621

Additional Links From RX Location

Client TX Location Band Frequency RX Location
KiwirailMt Hikurangi (King Country)UHF429.88MHz Raetihi
KiwirailOhakune Station RdKu12.821GHz Raetihi
KiwirailRaetihiUHF424.86MHz Mt Hikurangi (King Country)
KiwirailRaetihiC7.896GHz Waiouru
KiwirailRaetihiKu13.087GHz Ohakune Station Rd
KiwirailWaiouruX8.207GHz Raetihi
