Point to Point Link: Two Degrees Networks Limited - (Wst-056-001-C)[Greo]_Off Taylorville Rd, Taylorville

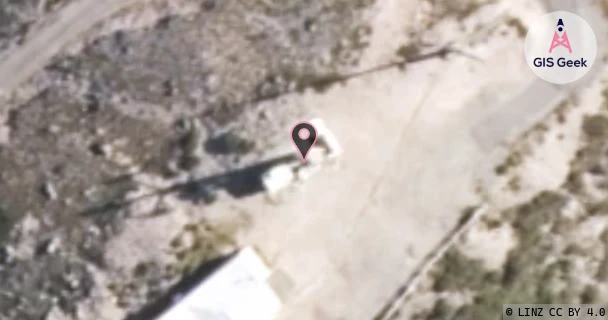

Two Degrees Networks Limited - (Wst-056-001-C)[Greo]_Off Taylorville Rd, Taylorville aerial image

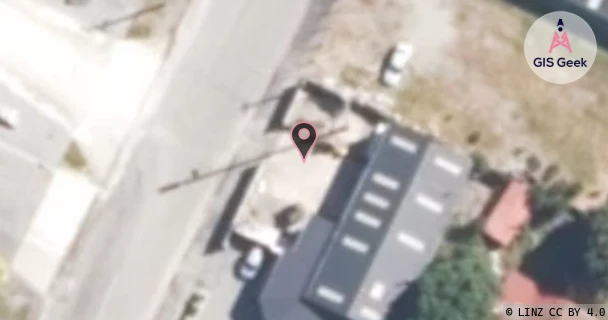

Two Degrees Networks Limited - (Wst-056-001-C)[Greo]_Off Taylorville Rd, Taylorville aerial image

Licence Overview

The link registered to Two Degrees Networks Limited is a K band link at 18.58GHz. It transmits from (Wst-056-001-C)[Greo]_Off Taylorville Rd, Taylorville, and is received at (Wst-056-002-B)[Grec]_Greymouth, a distance of 12.37km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Eonfibre Limited2
Two Degrees Networks Limited4
Zelan Limited2

Licence and Location Details

Licence
Frequency18.58GHz
Frequency Range18.525GHz - 18.635GHz
Channel Width110MHz
Channel Code18G8A
Power dBW(eirp)40
Emission110MD7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance12.37km
RSM Licence ID420321
RSM Licence #415338
TX: (Wst-056-001-C)[Greo]_Off Taylorville Rd, Taylorville
AntennaERICSSON - ANT3/3 C 1.2 7/8/18 HPX/HPX 18GHZ
Antenna TypePARABOLIC DUAL BAND
EquipmentEricsson - 6365
RX: (Wst-056-002-B)[Grec]_Greymouth
AntennaERICSSON - ANT3/3 C 1.2 7/8/18 HPX/HPX 18GHZ
Antenna TypePARABOLIC DUAL BAND
EquipmentEricsson - 6365

Associated Licence

#1: (Wst-056-002-B)[Grec]_Greymouth
Frequency19.59GHz
Frequency Range19.535GHz - 19.645GHz
Channel Width110MHz
Channel Code18G8A#
Power dBW(eirp)40
Emission110MD7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID420322
RSM Licence #415339

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Eonfibre LimitedDepartment Of Conservation Sewell PeakX10.915GHz Regent Theatre Corner Mackay Street & Herbet Stree...
Eonfibre LimitedRegent Theatre Corner Mackay Street & Herbet Stree...X11.445GHz Department Of Conservation Sewell Peak
Two Degrees Networks Limited(Wst-056-001-C)[Greo]_Off Taylorville Rd, Taylorvi...C7.881GHz (Wst-056-002-B)[Grec]_Greymouth
Two Degrees Networks Limited(Wst-056-002-B)[Grec]_GreymouthX8.192GHz (Wst-056-001-C)[Greo]_Off Taylorville Rd, Taylorvi...
Two Degrees Networks LimitedCorner Arney Street And Boundary Street Greymouth...X11.545GHz Sewell Peak Greymouth ( Wst-056-001-C )
Two Degrees Networks LimitedSewell Peak Greymouth ( Wst-056-001-C )X11.015GHz Corner Arney Street And Boundary Street Greymouth...
Zelan LimitedSewell PeakC7.453GHz Waitahua Dam
Zelan LimitedWaitahua DamC7.614GHz Sewell Peak

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Two Degrees Networks Limited(Wst-056-001-C)[Greo]_Off Taylorville Rd, Taylorvi...C7.881GHz (Wst-056-002-B)[Grec]_Greymouth
Two Degrees Networks Limited(Wst-056-002-B)[Grec]_GreymouthX8.192GHz (Wst-056-001-C)[Greo]_Off Taylorville Rd, Taylorvi...
Two Degrees Networks LimitedCorner Arney Street And Boundary Street Greymouth...X11.545GHz Sewell Peak Greymouth ( Wst-056-001-C )
Two Degrees Networks LimitedSewell Peak Greymouth ( Wst-056-001-C )X11.015GHz Corner Arney Street And Boundary Street Greymouth...
