Licence Overview

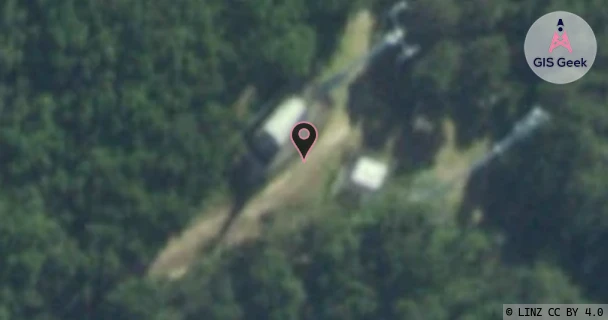

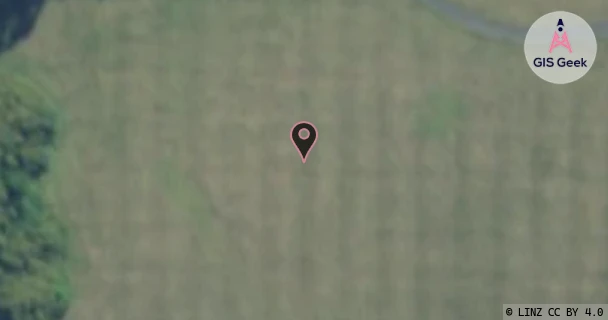

The link registered to Eonfibre Limited is a K band link at 22.064GHz. It transmits from Haruru Falls (Vf N1Hrf), and is received at Cow Waitangi Treaty Grounds 26 Tau Henare Drive Waitangi Kerikeri, a distance of 3.3km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
Licence and Location Details
| TX: Haruru Falls (Vf N1Hrf) | |
|---|---|
| Antenna | ANDREW - VHLPX2-23/C |
| Antenna Type | PARABOLIC 23 GHZ |
| Equipment | Siae - AGS20 |
| RX: Cow Waitangi Treaty Grounds 26 Tau Henare Drive Waitangi Kerikeri | |
|---|---|
| Antenna | ANDREW - VHLPX2-23/C |
| Antenna Type | PARABOLIC 23 GHZ |
| Equipment | Siae - AGS20 |
Associated Licence
| #1: Cow Waitangi Treaty Grounds 26 Tau Henare Drive Waitangi Kerikeri | |
|---|---|
| Frequency | 23.296GHz |
| Frequency Range | 23.24GHz - 23.352GHz |
| Channel Width | 112MHz |
| Channel Code | 23G8# |
| Power dBW(eirp) | 33 |
| Emission | 112MD7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 415329 |
| RSM Licence # | 411995 |
