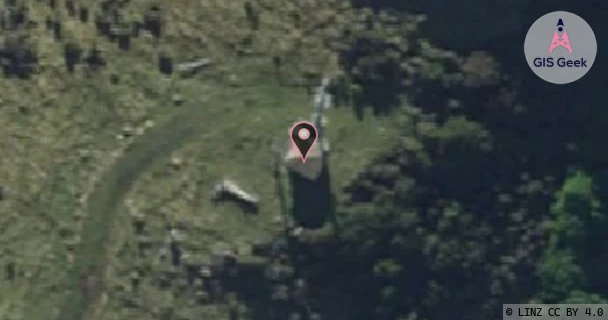

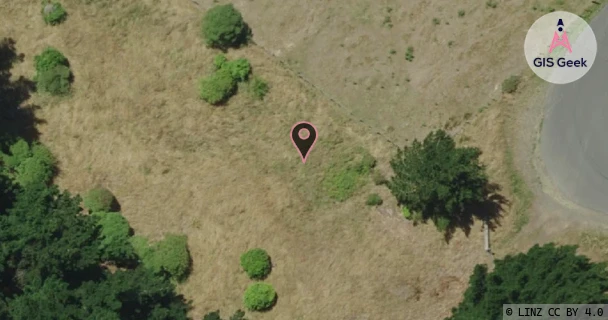

Orion New Zealand Ltd - Lower Akaroa aerial image
Orion New Zealand Ltd - Lower Akaroa aerial image

Licence Overview

The link registered to Orion New Zealand Ltd is a Ku band link at 15.18GHz. It transmits from Lower Akaroa, and is received at Rocky Peak (Orion), a distance of 10.9km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Orion New Zealand Ltd2

Licence and Location Details

Licence
Frequency15.18GHz
Frequency Range15.173GHz - 15.187GHz
Channel Width14MHz
Channel Code15G2A1#
Power dBW(eirp)32.6
Emission14M0D7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance10.9km
RSM Licence ID426422
RSM Licence #402214
TX: Lower Akaroa
AntennaCOMMSCOPE - VHLP1-15/C
Antenna TypePARABOLIC 15 GHZ BAND
EquipmentNec - IPASOLINK VR SERIES
RX: Rocky Peak (Orion)
AntennaCOMMSCOPE - VHLP1-15/C
Antenna TypePARABOLIC 15 GHZ BAND
EquipmentNec - IPASOLINK VR SERIES

Associated Licence

#1: Rocky Peak (Orion)
Frequency14.536GHz
Frequency Range14.529GHz - 14.543GHz
Channel Width14MHz
Channel Code15G2A1
Power dBW(eirp)32.6
Emission14M0D7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID426373
RSM Licence #402213

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Orion New Zealand LtdDuvauchelleUHF442.46MHz Lower Akaroa
Orion New Zealand LtdLower AkaroaUHF447.47MHz Duvauchelle

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Orion New Zealand LtdBirdlings FlatUHF446.84MHz Rocky Peak (Orion)
Orion New Zealand LtdLavericksUHF447.54MHz Rocky Peak (Orion)
Orion New Zealand LtdLighthouse Road, Akaroa HeadUHF447.92MHz Rocky Peak (Orion)
Orion New Zealand LtdLittle River SubUHF447.42MHz Rocky Peak (Orion)
Orion New Zealand LtdMarleys HillUHF459.11MHz Rocky Peak (Orion)
Orion New Zealand LtdRocky Peak (Orion)UHF441.84MHz Birdlings Flat
Orion New Zealand LtdRocky Peak (Orion)UHF442.41MHz Little River Sub
Orion New Zealand LtdRocky Peak (Orion)UHF442.54MHz Lavericks
Orion New Zealand LtdRocky Peak (Orion)UHF442.91MHz Lighthouse Road, Akaroa Head
Orion New Zealand LtdRocky Peak (Orion)UHF454.08MHz Marleys Hill
