Licence Overview
The link registered to Select Solutions Limited is a X band link at 11.365GHz. It transmits from 1333 Manaia Road, Te Kouma, Coromandel, and is received at 75 Wharf Road, Coromandel, a distance of 6.41km.

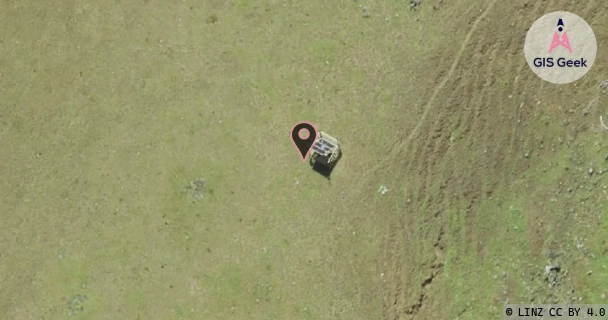

TX: GIS Geek | LINZ | GMaps | Street View

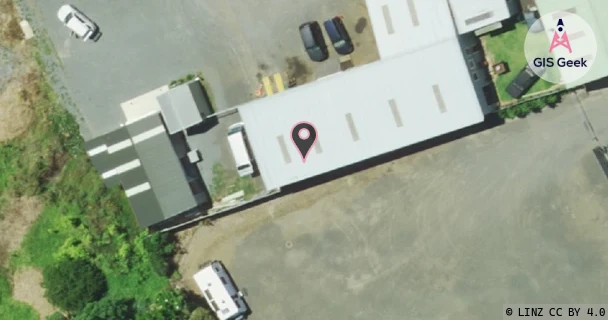

RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
Licence and Location Details
| TX: 1333 Manaia Road, Te Kouma, Coromandel | |
|---|---|
| Antenna | ANDREW - VHLP2-11W |
| Antenna Type | PARABOLIC 10-11.7GHZ |
| Equipment | Cambium - PTP820S |
| RX: 75 Wharf Road, Coromandel | |
|---|---|
| Antenna | ANDREW - VHLP2-11W |
| Antenna Type | PARABOLIC 10-11.7GHZ |
| Equipment | Cambium - PTP820S |
Associated Licence
| #1: 75 Wharf Road, Coromandel | |
|---|---|
| Frequency | 10.835GHz |
| Frequency Range | 10.795GHz - 10.875GHz |
| Channel Width | 80MHz |
| Channel Code | 11G2W |
| Power dBW(eirp) | 26 |
| Emission | 80M0D7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 417999 |
| RSM Licence # | 413485 |
