Point to Point Link: Two Degrees Networks Limited - (Tnk-033-025-A)[Igwd]_Inglewood

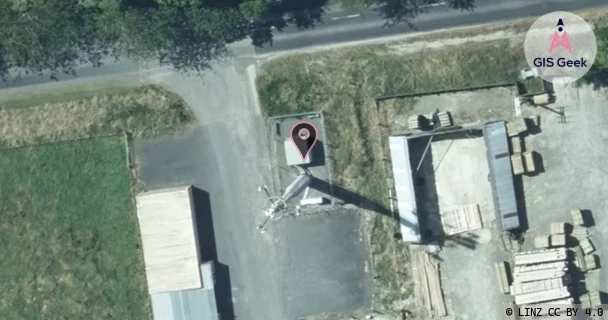

Two Degrees Networks Limited - (Tnk-033-025-A)[Igwd]_Inglewood aerial image
Two Degrees Networks Limited - (Tnk-033-025-A)[Igwd]_Inglewood aerial image

Licence Overview

The link registered to Two Degrees Networks Limited is a X band link at 10.755GHz. It transmits from (Tnk-033-025-A)[Igwd]_Inglewood, and is received at (Tnk-033-045-A)[Rpko]_Ratapiko, a distance of 11.19km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Two Degrees Networks Limited2

Licence and Location Details

Licence
Frequency10.755GHz
Frequency Range10.715GHz - 10.795GHz
Channel Width80MHz
Channel Code11G1W
Power dBW(eirp)26
Emission80M0D7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance11.19km
RSM Licence ID425673
RSM Licence #420087
TX: (Tnk-033-025-A)[Igwd]_Inglewood
AntennaERICSSON - ANT3 C 0.6 11 HPX
Antenna TypePARABOLIC
EquipmentEricsson - 6365
RX: (Tnk-033-045-A)[Rpko]_Ratapiko
AntennaERICSSON - ANT3 C 0.6 11 HPX
Antenna TypePARABOLIC
EquipmentEricsson - 6365

Associated Licence

#1: (Tnk-033-045-A)[Rpko]_Ratapiko
Frequency11.285GHz
Frequency Range11.245GHz - 11.325GHz
Channel Width80MHz
Channel Code11G1W#
Power dBW(eirp)26
Emission80M0D7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID425674
RSM Licence #420088

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Two Degrees Networks Limited(Tnk-033-025-A)[Igwd]_InglewoodX10.835GHz (Tnk-033-045-A)[Rpko]_Ratapiko
Two Degrees Networks Limited(Tnk-033-045-A)[Rpko]_RatapikoX11.365GHz (Tnk-033-025-A)[Igwd]_Inglewood

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Two Degrees Networks Limited(Tnk-033-025-A)[Igwd]_InglewoodX10.835GHz (Tnk-033-045-A)[Rpko]_Ratapiko
Two Degrees Networks Limited(Tnk-033-045-A)[Rpko]_RatapikoX11.365GHz (Tnk-033-025-A)[Igwd]_Inglewood
Two Degrees Networks Limited(Tnk-033-045-A)[Rpko]_RatapikoK18.14GHz (Tnk-034-004-B)[Naki]_Mount Taranaki
Two Degrees Networks Limited(Tnk-033-045-A)[Rpko]_RatapikoK18.25GHz (Tnk-034-004-B)[Naki]_Mount Taranaki
Two Degrees Networks Limited(Tnk-034-004-B)[Naki]_Mount TaranakiK19.15GHz (Tnk-033-045-A)[Rpko]_Ratapiko
Two Degrees Networks Limited(Tnk-034-004-B)[Naki]_Mount TaranakiK19.26GHz (Tnk-033-045-A)[Rpko]_Ratapiko
