Licence Overview
The link registered to Unifone New Zealand Limited is a X band link at 11.525GHz. It transmits from Tussock Ridge Trustpower, and is received at 292 Saddle Hill Road, Saddle Hill, Dunedin (Unifone Jaffrays Hill), a distance of 29.75km.

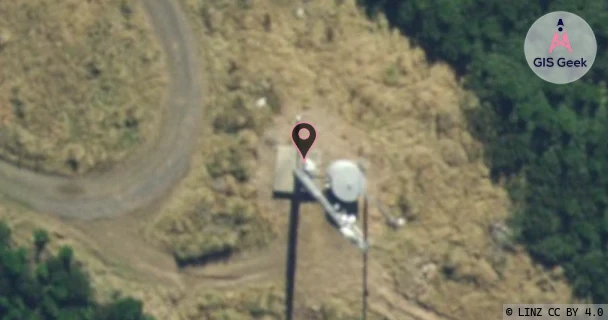

TX: GIS Geek | LINZ | GMaps | Street View

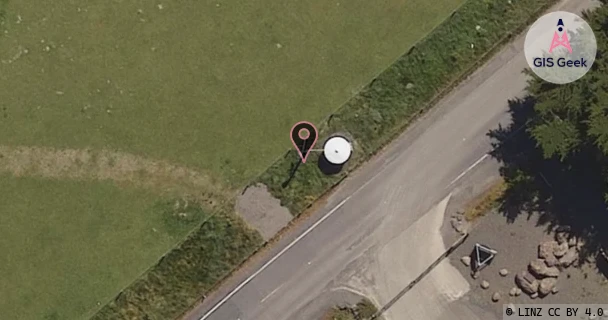

RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Manawa Energy Generation Limited | 2 |
| Unifone New Zealand Limited | 3 |
Licence and Location Details
| TX: Tussock Ridge Trustpower | |
|---|---|
| Antenna | SHENGLU - SLU0911SS |
| Antenna Type | PARABOLIC 11G BAND |
| Equipment | Aviat - WTM 4100 |
| RX: 292 Saddle Hill Road, Saddle Hill, Dunedin (Unifone Jaffrays Hill) | |
|---|---|
| Antenna | SHENGLU - SLU0611SS |
| Antenna Type | PARABOLIC 11G BAND |
| Equipment | Aviat - WTM 4100 |
Associated Licence
| #1: 292 Saddle Hill Road, Saddle Hill, Dunedin (Unifone Jaffrays Hill) | |
|---|---|
| Frequency | 10.995GHz |
| Frequency Range | 10.955GHz - 11.035GHz |
| Channel Width | 80MHz |
| Channel Code | 11G4W |
| Power dBW(eirp) | 32 |
| Emission | 80M0D7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 426456 |
| RSM Licence # | 420526 |
Additional Links From TX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Manawa Energy Generation Limited | Mahinerangi Wind Farm Substation | L | 1.524GHz | Tussock Ridge Trustpower |
| Manawa Energy Generation Limited | Tussock Ridge Trustpower | L | 1.429GHz | Mahinerangi Wind Farm Substation |
| Unifone New Zealand Limited | 949 Allanton-Waihola Road, Allanton | X | 10.755GHz | Tussock Ridge Trustpower |
| Unifone New Zealand Limited | Tussock Ridge Trustpower | X | 11.285GHz | 949 Allanton-Waihola Road, Allanton |
| Unifone New Zealand Limited | Tussock Ridge Trustpower | K | 19.37GHz | Waipori Falls Power Station |
| Unifone New Zealand Limited | Waipori Falls Power Station | K | 18.36GHz | Tussock Ridge Trustpower |
