Licence Overview
The link registered to Inspire Net Limited is a K band link at 18.305GHz. It transmits from Rwmjer - Jerusalem, and is received at Morikau 501, a distance of 2.51km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Inspire Net Limited | 2 |
Licence and Location Details

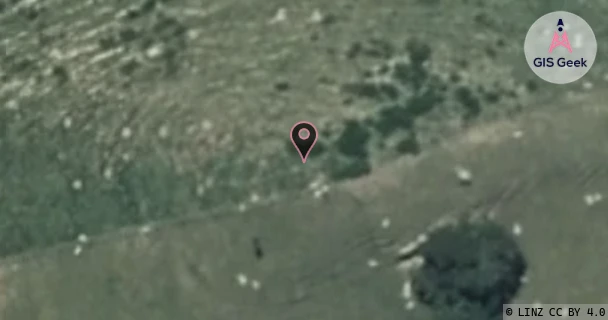

| TX: Rwmjer - Jerusalem | |
|---|---|
| Antenna | COMMSCOPE - VHLP2-18/C |
| Antenna Type | PARABOLIC 18 GHZ |
| Equipment | Ceragon - FIBEAIR IP-20C |

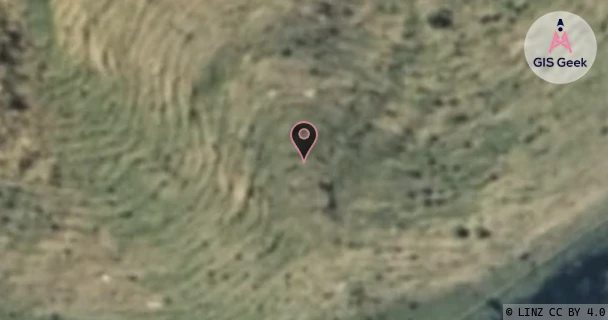

| RX: Morikau 501 | |
|---|---|
| Antenna | COMMSCOPE - VHLP2-18/C |
| Antenna Type | PARABOLIC 18 GHZ |
| Equipment | Ceragon - FIBEAIR IP-20C |
Associated Licence
| #1: Morikau 501 | |
|---|---|
| Frequency | 19.315GHz |
| Frequency Range | 19.288GHz - 19.343GHz |
| Channel Width | 55MHz |
| Channel Code | 18G6B1# |
| Power dBW(eirp) | 30 |
| Emission | 55M0D7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 417592 |
| RSM Licence # | 412918 |
