Licence Overview
The link registered to Orion New Zealand Ltd is a Ku band link at 15.18GHz. It transmits from Lighthouse Rd, and is received at Hilltop, a distance of 11.11km.

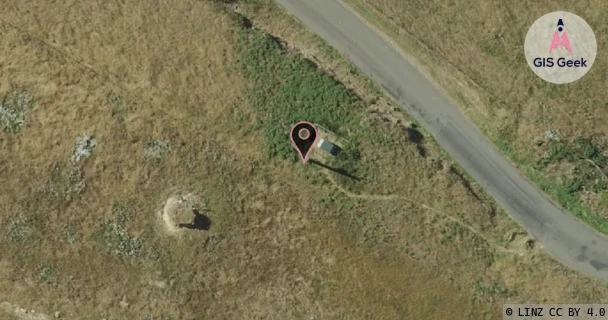

TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
TX Location Client Stats
| Client | Links |
|---|---|
| Orion New Zealand Ltd | 3 |
| Ultimate Mobile Limited | 2 |
Licence and Location Details
| Licence | |
|---|---|
| Frequency | 15.18GHz |
| Frequency Range | 15.173GHz - 15.187GHz |
| Channel Width | 14MHz |
| Channel Code | 15G2A1# |
| Power dBW(eirp) | 32.6 |
| Emission | 14M0D7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | Wed 26th Apr 2023 4 months ago |
| Licence Last Updated | Fri 27th Jan 2023 7 months ago |
| Link Distance | 11.11km |
| RSM Licence ID | 400988 |
| RSM Licence # | 402214 |
| TX: Lighthouse Rd | |
|---|---|
| Antenna | COMMSCOPE - VHLP1-15/C |
| Antenna Type | PARABOLIC 15 GHZ BAND |
| Equipment | Nec - IPASOLINK VR SERIES |
| RX: Hilltop | |
|---|---|
| Antenna | COMMSCOPE - VHLP1-15/C |
| Antenna Type | PARABOLIC 15 GHZ BAND |
| Equipment | Nec - IPASOLINK VR SERIES |
Associated Licence
| #1: Hilltop | |
|---|---|
| Frequency | 14.536GHz |
| Frequency Range | 14.529GHz - 14.543GHz |
| Channel Width | 14MHz |
| Channel Code | 15G2A1 |
| Power dBW(eirp) | 32.6 |
| Emission | 14M0D7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | Wed 26th Apr 2023 4 months ago |
| Licence Last Updated | Wed 1st Feb 2023 7 months ago |
| RSM Licence ID | 400987 |
| RSM Licence # | 402213 |
Additional Links From TX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Orion New Zealand Ltd | Duvauchelle | UHF | 442.46MHz | Lighthouse Rd |
| Orion New Zealand Ltd | Hilltop | UHF | 442.91MHz | Lighthouse Rd |
| Orion New Zealand Ltd | Lighthouse Rd | UHF | 447.47MHz | Duvauchelle |
| Orion New Zealand Ltd | Lighthouse Rd | UHF | 447.92MHz | Hilltop |
| Ultimate Mobile Limited | Akaroa Main (Uml) | Ku | 12.835GHz | View Hill (Uml) |
| Ultimate Mobile Limited | View Hill (Uml) | Ku | 13.101GHz | Akaroa Main (Uml) |
Additional Links From RX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Orion New Zealand Ltd | Hilltop | UHF | 441.84MHz | Whites Rd Pb13/105 |
| Orion New Zealand Ltd | Hilltop | UHF | 442.41MHz | Little River |
| Orion New Zealand Ltd | Hilltop | UHF | 442.91MHz | Lighthouse Rd |
| Orion New Zealand Ltd | Lighthouse Rd | UHF | 447.92MHz | Hilltop |
| Orion New Zealand Ltd | Little River | UHF | 447.42MHz | Hilltop |
| Orion New Zealand Ltd | Whites Rd Pb13/105 | UHF | 446.84MHz | Hilltop |
