Point to Point Link: Unison Networks Limited - Tamatea Sub Station

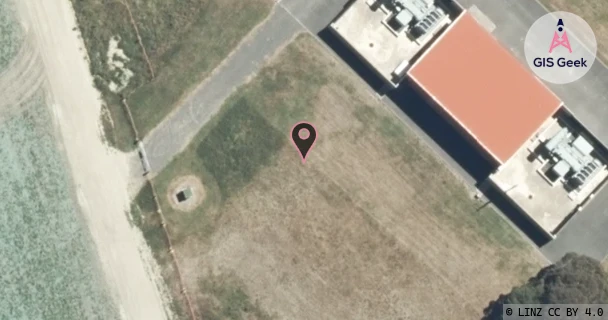

Unison Networks Limited - Tamatea Sub Station aerial image
Unison Networks Limited - Tamatea Sub Station aerial image

Licence Overview

The link registered to Unison Networks Limited is a UHF band link at 454.23MHz. It transmits from Tamatea Sub Station, and is received at Eskdale Unison, a distance of 13.4km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

Licence and Location Details

Licence
Frequency454.23MHz
Frequency Range454.213MHz - 454.237MHz
Channel Width25kHz
Channel CodeJ24B
Power dBW(eirp)5
Emission21K2D1D
Licence TypeFixed <1 GHz; BW <=50 kHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance13.4km
RSM Licence ID214957
RSM Licence #276857
TX: Tamatea Sub Station
AntennaMIMOMAX - 450-470-010-YDXX
Antenna TypeUHF DUAL POLARISED YAGI
EquipmentTait - MIMO DLL-320

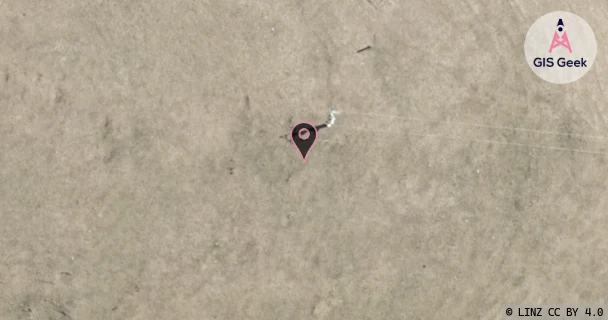

RX: Eskdale Unison
AntennaMIMOMAX - 450-470-010-YDXX
Antenna TypeUHF DUAL POLARISED YAGI
EquipmentTait - MIMO DLL-320

Associated Licence

#1: Eskdale Unison
Frequency459.26MHz
Frequency Range459.25MHz - 459.275MHz
Channel Width25kHz
Channel CodeJ24B#
Power dBW(eirp)5
Emission21K2D1D
Licence TypeFixed <1 GHz; BW <=50 kHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID214950
RSM Licence #276856
