Licence Overview

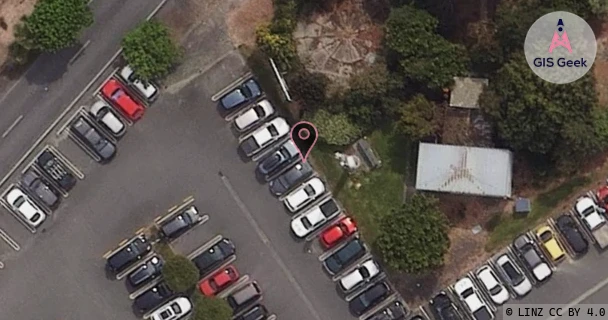

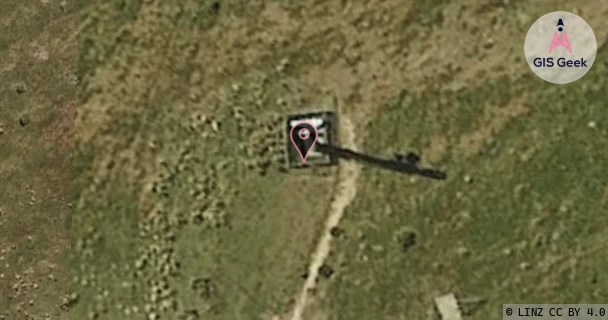

The link registered to Two Degrees Networks Limited is a K band link at 21.952GHz. It transmits from (Otg-071-001-C)[Tepl]_Taieri Plains, and is received at (Otg-071-029-B)[Arpt]_Airport Terminal, a distance of 2.97km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Two Degrees Networks Limited | 2 |
Licence and Location Details
| TX: (Otg-071-001-C)[Tepl]_Taieri Plains | |
|---|---|
| Antenna | ERICSSON - 3/2 C 0.3 23/80 HPX/HPX 23GHZ |
| Antenna Type | PARABOLIC (DUAL BAND) |
| Equipment | Ericsson - 6365 |
| RX: (Otg-071-029-B)[Arpt]_Airport Terminal | |
|---|---|
| Antenna | ERICSSON - 3/2 C 0.6 23/80 HPX/HPX 23GHZ |
| Antenna Type | PARABOLIC DUAL BAND 23GHZ/80GHZ |
| Equipment | Ericsson - 6365 |
Associated Licence
| #1: (Otg-071-029-B)[Arpt]_Airport Terminal | |
|---|---|
| Frequency | 23.184GHz |
| Frequency Range | 23.128GHz - 23.24GHz |
| Channel Width | 112MHz |
| Channel Code | 23G7# |
| Power dBW(eirp) | 35 |
| Emission | 112MD7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 417550 |
| RSM Licence # | 412531 |
