Licence Overview
The link registered to Vital Limited is a X band link at 11.305GHz. It transmits from Wilton Substation, and is received at Gracefield Substation, a distance of 13.38km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Transpower New Zealand Limited | 2 |
| Vital Limited | 2 |
Licence and Location Details

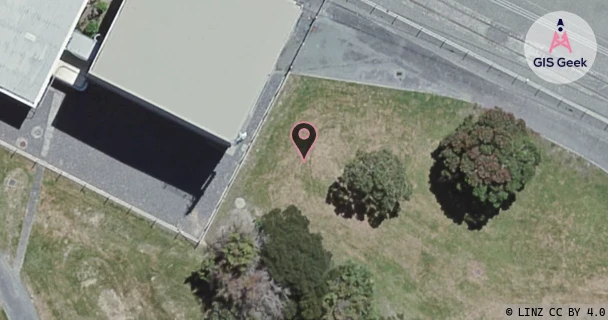

| TX: Wilton Substation | |
|---|---|
| Antenna | ANDREW - VHLPX2-11W/A |
| Antenna Type | PARABOLIC 11 GHZ |
| Equipment | Nec - IPASOLINK VR SERIES |

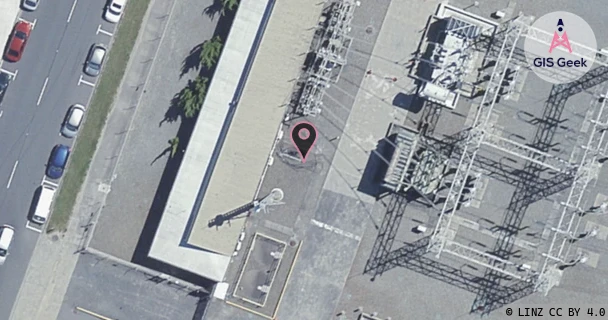

| RX: Gracefield Substation | |
|---|---|
| Antenna | ANDREW - VHLPX2-11W/A |
| Antenna Type | PARABOLIC 11 GHZ |
| Equipment | Nec - IPASOLINK VR SERIES |
Associated Licence
| #1: Gracefield Substation | |
|---|---|
| Frequency | 10.775GHz |
| Frequency Range | 10.755GHz - 10.795GHz |
| Channel Width | 40MHz |
| Channel Code | 11G3A |
| Power dBW(eirp) | 32 |
| Emission | 40M0D7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 423835 |
| RSM Licence # | 419112 |
Additional Links From TX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Transpower New Zealand Limited | Gracefield Substation | X | 10.715GHz | Wilton Substation |
| Transpower New Zealand Limited | Wilton Substation | X | 11.245GHz | Gracefield Substation |
| Vital Limited | Gracefield Substation | X | 10.735GHz | Wilton Substation |
| Vital Limited | Wilton Substation | X | 11.265GHz | Gracefield Substation |
Additional Links From RX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Transpower New Zealand Limited | Gracefield Substation | X | 10.715GHz | Wilton Substation |
| Transpower New Zealand Limited | Wilton Substation | X | 11.245GHz | Gracefield Substation |
| Vital Limited | Gracefield Substation | X | 10.735GHz | Wilton Substation |
| Vital Limited | Wilton Substation | X | 11.265GHz | Gracefield Substation |
