Point to Point Link: Vital Limited - Gracefield Substation

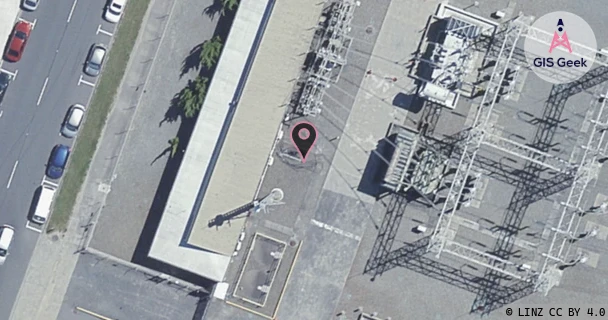

Vital Limited - Gracefield Substation aerial image

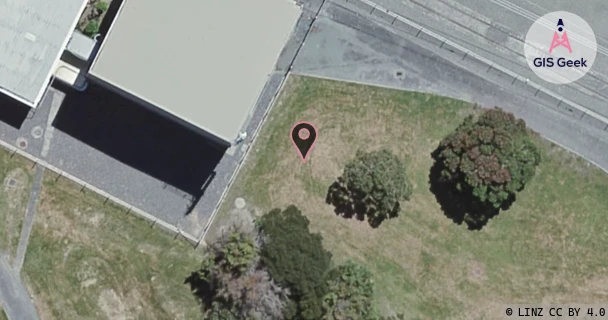

Vital Limited - Gracefield Substation aerial image

Licence Overview

The link registered to Vital Limited is a X band link at 10.775GHz. It transmits from Gracefield Substation, and is received at Wilton Substation, a distance of 13.38km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Transpower New Zealand Limited2
Vital Limited2

Licence and Location Details

Licence
Frequency10.775GHz
Frequency Range10.755GHz - 10.795GHz
Channel Width40MHz
Channel Code11G3A
Power dBW(eirp)32
Emission40M0D7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance13.38km
RSM Licence ID423835
RSM Licence #419112
TX: Gracefield Substation
AntennaANDREW - VHLPX2-11W/A
Antenna TypePARABOLIC 11 GHZ
EquipmentNec - IPASOLINK VR SERIES
RX: Wilton Substation
AntennaANDREW - VHLPX2-11W/A
Antenna TypePARABOLIC 11 GHZ
EquipmentNec - IPASOLINK VR SERIES

Associated Licence

#1: Wilton Substation
Frequency11.305GHz
Frequency Range11.285GHz - 11.325GHz
Channel Width40MHz
Channel Code11G3A#
Power dBW(eirp)32
Emission40M0D7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID423837
RSM Licence #419113

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Transpower New Zealand LimitedGracefield SubstationX10.715GHz Wilton Substation
Transpower New Zealand LimitedWilton SubstationX11.245GHz Gracefield Substation
Vital LimitedGracefield SubstationX10.735GHz Wilton Substation
Vital LimitedWilton SubstationX11.265GHz Gracefield Substation

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Transpower New Zealand LimitedGracefield SubstationX10.715GHz Wilton Substation
Transpower New Zealand LimitedWilton SubstationX11.245GHz Gracefield Substation
Vital LimitedGracefield SubstationX10.735GHz Wilton Substation
Vital LimitedWilton SubstationX11.265GHz Gracefield Substation
