Licence Overview
The link registered to Eonfibre Limited is a X band link at 10.995GHz. It transmits from Levin High (Mnw-042-001-B), and is received at Levin Central, a distance of 6.05km.

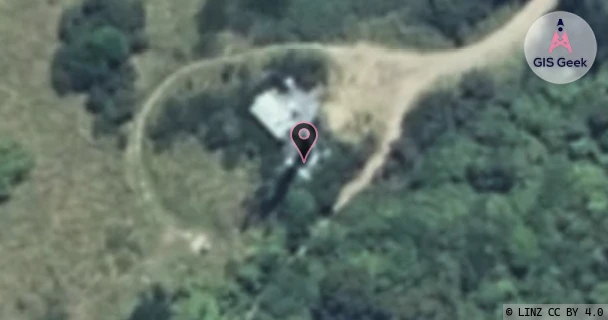

TX: GIS Geek | LINZ | GMaps | Street View

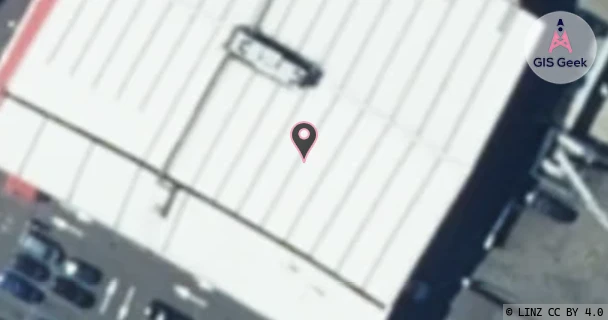

RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Eonfibre Limited | 2 |
| Two Degrees Networks Limited | 5 |
Licence and Location Details
| TX: Levin High (Mnw-042-001-B) | |
|---|---|
| Antenna | ANDREW - VHLPX2-11W |
| Antenna Type | PARABOLIC Z BAND |
| Equipment | Nec - IPASOLINK VR IAP3 |
| RX: Levin Central | |
|---|---|
| Antenna | ANDREW - VHLPX2-11W |
| Antenna Type | PARABOLIC Z BAND |
| Equipment | Nec - IPASOLINK VR IAP3 |
Associated Licence
| #1: Levin Central | |
|---|---|
| Frequency | 11.525GHz |
| Frequency Range | 11.485GHz - 11.565GHz |
| Channel Width | 80MHz |
| Channel Code | 11G4W# |
| Power dBW(eirp) | 33.5 |
| Emission | 80M0D7WET |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 425592 |
| RSM Licence # | 419780 |
Additional Links From TX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Eonfibre Limited | Corner State Highway 1 & Omanuka Road Oroua Downs | C | 7.748GHz | Levin High (Mnw-042-001-B) |
| Eonfibre Limited | Levin High (Mnw-042-001-B) | X | 8.059GHz | Corner State Highway 1 & Omanuka Road Oroua Downs |
| Two Degrees Networks Limited | (Mnw-042-001-B)[Lvin]_Levin | K | 19.37GHz | (Mnw-042-003-A)[Lvcn]_Levin Central |
| Two Degrees Networks Limited | (Mnw-042-001-B)[Lvin]_Levin | W | 82.25GHz | (Mnw-042-003-A)[Lvcn]_Levin Central |
| Two Degrees Networks Limited | (Mnw-042-003-A)[Lvcn]_Levin Central | K | 18.36GHz | (Mnw-042-001-B)[Lvin]_Levin |
| Two Degrees Networks Limited | (Mnw-042-003-A)[Lvcn]_Levin Central | V | 72.25GHz | (Mnw-042-001-B)[Lvin]_Levin |
| Two Degrees Networks Limited | 261 Oxford Street Levin Central (Mnw-042-003-A) | Ku | 13.143GHz | Levin High (Mnw-042-001-B) |
| Two Degrees Networks Limited | 76 Taikorea Road (Mnw-039-004-A) | C | 7.655GHz | Levin High (Mnw-042-001-B) |
| Two Degrees Networks Limited | Levin High (Mnw-042-001-B) | C | 7.495GHz | 76 Taikorea Road (Mnw-039-004-A) |
| Two Degrees Networks Limited | Levin High (Mnw-042-001-B) | Ku | 12.877GHz | 261 Oxford Street Levin Central (Mnw-042-003-A) |
