Point to Point Link: Eonfibre Limited - Levin Central

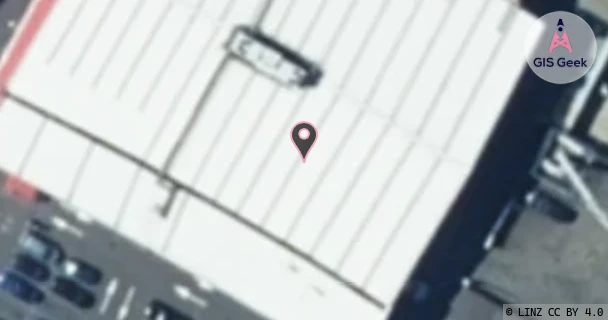

Eonfibre Limited - Levin Central aerial image

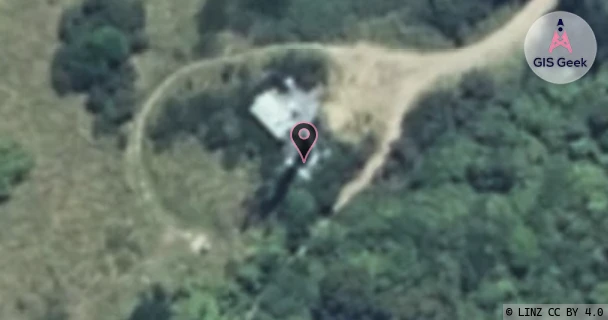

Eonfibre Limited - Levin Central aerial image

Licence Overview

The link registered to Eonfibre Limited is a X band link at 11.525GHz. It transmits from Levin Central, and is received at Levin High (Mnw-042-001-B), a distance of 6.05km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Eonfibre Limited2

Licence and Location Details

Licence
Frequency11.525GHz
Frequency Range11.485GHz - 11.565GHz
Channel Width80MHz
Channel Code11G4W#
Power dBW(eirp)33.5
Emission80M0D7WET
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance6.05km
RSM Licence ID425592
RSM Licence #419780
TX: Levin Central
AntennaANDREW - VHLPX2-11W
Antenna TypePARABOLIC Z BAND
EquipmentNec - IPASOLINK VR IAP3
RX: Levin High (Mnw-042-001-B)
AntennaANDREW - VHLPX2-11W
Antenna TypePARABOLIC Z BAND
EquipmentNec - IPASOLINK VR IAP3

Associated Licence

#1: Levin High (Mnw-042-001-B)
Frequency10.995GHz
Frequency Range10.955GHz - 11.035GHz
Channel Width80MHz
Channel Code11G4W
Power dBW(eirp)33.5
Emission80M0D7WET
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID425591
RSM Licence #419779

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Eonfibre LimitedArapaepae TrigK19.59GHz Levin Central
Eonfibre LimitedLevin CentralK18.58GHz Arapaepae Trig

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Eonfibre LimitedCorner State Highway 1 & Omanuka Road Oroua DownsC7.748GHz Levin High (Mnw-042-001-B)
Eonfibre LimitedLevin High (Mnw-042-001-B)X8.059GHz Corner State Highway 1 & Omanuka Road Oroua Downs
Two Degrees Networks Limited(Mnw-042-001-B)[Lvin]_LevinK19.37GHz (Mnw-042-003-A)[Lvcn]_Levin Central
Two Degrees Networks Limited(Mnw-042-001-B)[Lvin]_LevinW82.25GHz (Mnw-042-003-A)[Lvcn]_Levin Central
Two Degrees Networks Limited(Mnw-042-003-A)[Lvcn]_Levin CentralK18.36GHz (Mnw-042-001-B)[Lvin]_Levin
Two Degrees Networks Limited(Mnw-042-003-A)[Lvcn]_Levin CentralV72.25GHz (Mnw-042-001-B)[Lvin]_Levin
Two Degrees Networks Limited261 Oxford Street Levin Central (Mnw-042-003-A)Ku13.143GHz Levin High (Mnw-042-001-B)
Two Degrees Networks Limited76 Taikorea Road (Mnw-039-004-A)C7.655GHz Levin High (Mnw-042-001-B)
Two Degrees Networks LimitedLevin High (Mnw-042-001-B)C7.495GHz 76 Taikorea Road (Mnw-039-004-A)
Two Degrees Networks LimitedLevin High (Mnw-042-001-B)Ku12.877GHz 261 Oxford Street Levin Central (Mnw-042-003-A)
