Licence Overview
The link registered to Kiwirail is a UHF band link at 448.18MHz. It transmits from Signals 150.15Km, and is received at Inchbonnies Kiwirail Radio Site 1, a distance of 2.34km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Kiwirail | 2 |
Licence and Location Details

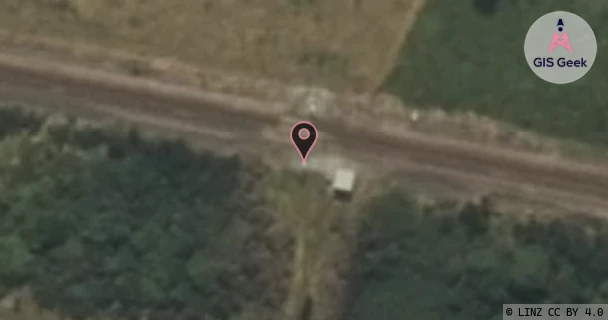

| TX: Signals 150.15Km | |
|---|---|
| Antenna | RFI - YB9 |
| Antenna Type | 9 ELEMENT UHF YAGI |
| Equipment | 4Rf - APRISA SR+ 400 50K |

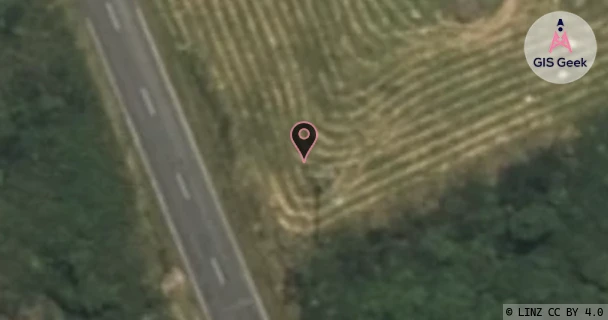

| RX: Inchbonnies Kiwirail Radio Site 1 | |
|---|---|
| Antenna | RFI - YB9 |
| Antenna Type | 9 ELEMENT UHF YAGI |
| Equipment | 4Rf - APRISA SR+ 400 50K |
Associated Licence
| #1: Inchbonnies Kiwirail Radio Site 1 | |
|---|---|
| Frequency | 443.18MHz |
| Frequency Range | 443.15MHz - 443.2MHz |
| Channel Width | 50kHz |
| Channel Code | JL4C |
| Power dBW(eirp) | 13 |
| Emission | 50K0D7W |
| Licence Type | Fixed <1 GHz; BW <=50 kHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 425681 |
| RSM Licence # | 419642 |
