Licence Overview
The link registered to Kiwirail is a UHF band link at 443.18MHz. It transmits from Inchbonnies Kiwirail Radio Site 1, and is received at Signals 150.15Km, a distance of 2.34km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
Licence and Location Details

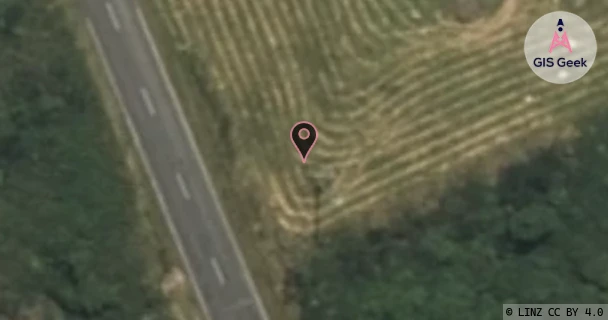

| TX: Inchbonnies Kiwirail Radio Site 1 | |
|---|---|
| Antenna | RFI - YB9 |
| Antenna Type | 9 ELEMENT UHF YAGI |
| Equipment | 4Rf - APRISA SR+ 400 50K |

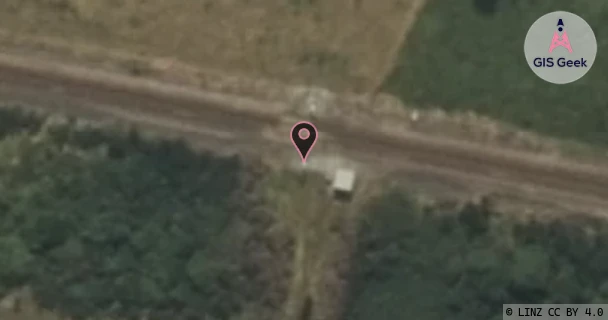

| RX: Signals 150.15Km | |
|---|---|
| Antenna | RFI - YB9 |
| Antenna Type | 9 ELEMENT UHF YAGI |
| Equipment | 4Rf - APRISA SR+ 400 50K |
Associated Licence
| #1: Signals 150.15Km | |
|---|---|
| Frequency | 448.18MHz |
| Frequency Range | 448.156MHz - 448.206MHz |
| Channel Width | 50kHz |
| Channel Code | JL4C# |
| Power dBW(eirp) | 13 |
| Emission | 50K0D7W |
| Licence Type | Fixed <1 GHz; BW <=50 kHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 425682 |
| RSM Licence # | 419643 |
