Point to Point Link: Chorus New Zealand Limited - Waipuna

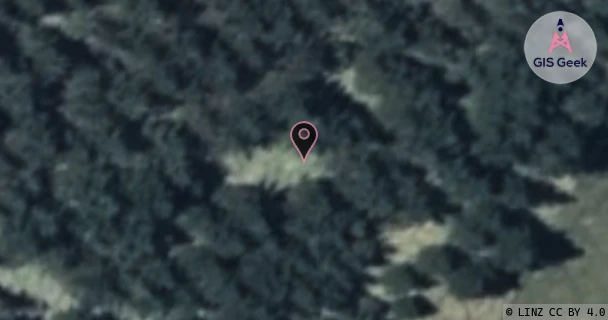

Chorus New Zealand Limited - Waipuna aerial image
Chorus New Zealand Limited - Waipuna aerial image

Licence Overview

The link registered to Chorus New Zealand Limited is a C band link at 6.96GHz. It transmits from Waipuna, and is received at Mt Maire, a distance of 52.32km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Chorus New Zealand Limited2

Licence and Location Details

Licence
Frequency6.96GHz
Frequency Range6.939GHz - 6.982GHz
Channel Width43MHz
Channel Code7GL5#
Power dBW(eirp)44
Emission43M0D9WWT
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance52.32km
RSM Licence ID22514
RSM Licence #58765
TX: Waipuna
AntennaANDREW - UHX10-65D
Antenna TypePARABOLIC T BAND
EquipmentFujitsu - DM6G-100H (+29)
RX: Mt Maire
AntennaANDREW - UHX10-65D
Antenna TypePARABOLIC T BAND
EquipmentFujitsu - DM6G-100H (+29)

Associated Licence

#1: Mt Maire
Frequency6.62GHz
Frequency Range6.599GHz - 6.642GHz
Channel Width43MHz
Channel Code7GL5
Power dBW(eirp)44
Emission43M0D9WWT
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID22523
RSM Licence #58777

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Chorus New Zealand LimitedMt HukaroaL1.501GHzMultiple: Waipuna Farm, Omerei, Otautu, Waipuna
Chorus New Zealand LimitedWaipunaL1.441GHz Mt Hukaroa

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Chorus New Zealand LimitedBald HillL1.443GHz Mt Maire
Chorus New Zealand LimitedBald HillL1.457GHz Mt Maire
Chorus New Zealand LimitedHihitahi Cell (Telecom)Ku12.793GHz Mt Maire
Chorus New Zealand LimitedKoeke NorthL1.443GHz Mt Maire
Chorus New Zealand LimitedMakokomikoL1.451GHz Mt Maire
Chorus New Zealand LimitedMt MaireL1.503GHzMultiple: Wairepu East, Koeke North, Bald Hill
Chorus New Zealand LimitedMt MaireL1.511GHzMultiple: Ohinewairua, Ohui, Makokomiko
Chorus New Zealand LimitedMt MaireL1.511GHz Ngatarua
Chorus New Zealand LimitedMt MaireL1.517GHz Bald Hill
Chorus New Zealand LimitedMt MaireC7.589GHz Pukeokahu
Chorus New Zealand LimitedMt MaireC7.624GHz Ohinewairua
Chorus New Zealand LimitedMt MaireC7.669GHz Ohinewairua
Chorus New Zealand LimitedMt MaireKu13.059GHz Utiku
Chorus New Zealand LimitedMt MaireKu13.059GHz Hihitahi Cell (Telecom)
Chorus New Zealand LimitedNgataruaL1.451GHz Mt Maire
Chorus New Zealand LimitedOhinewairuaC7.463GHz Mt Maire
Chorus New Zealand LimitedOhinewairuaC7.509GHz Mt Maire
Chorus New Zealand LimitedOhuiL1.451GHz Mt Maire
Chorus New Zealand LimitedPukeokahuC7.428GHz Mt Maire
Chorus New Zealand LimitedUtikuKu12.793GHz Mt Maire
Chorus New Zealand LimitedWairepu EastL1.443GHz Mt Maire
Vital LimitedHukaroaX8.267GHz Mt Maire
Vital LimitedKauaekekeUHF425.68MHz Mt Maire
Vital LimitedMt AshcroftX8.237GHz Mt Maire
Vital LimitedMt MaireUHF420.66MHz Kauaekeke
Vital LimitedMt MaireUHF443.08MHz Tukino
Vital LimitedMt MaireUHF809.75MHz Tukino
Vital LimitedMt MaireC7.926GHz Mt Ashcroft
Vital LimitedMt MaireC7.955GHz Hukaroa
Vital LimitedMt MaireX10.975GHz Tapuae
Vital LimitedMt MaireKu15.271GHz Utiku
Vital LimitedTapuaeX11.505GHz Mt Maire
Vital LimitedTukinoUHF448.08MHz Mt Maire
Vital LimitedTukinoUHF854.75MHz Mt Maire
Vital LimitedUtikuKu14.627GHz Mt Maire
