Point to Point Link: Chorus New Zealand Limited - Pihanga

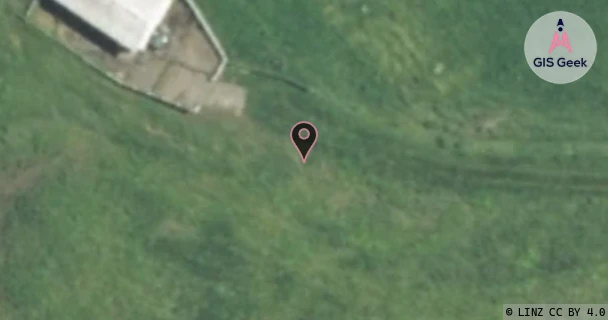

Chorus New Zealand Limited - Pihanga aerial image

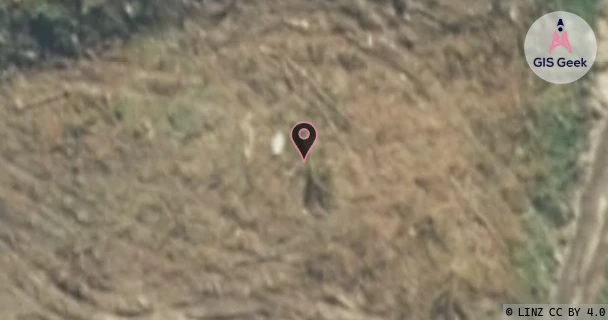

Chorus New Zealand Limited - Pihanga aerial image

Licence Overview

The link registered to Chorus New Zealand Limited is a C band link at 6.84GHz. It transmits from Pihanga, and is received at Whakapapataringa, a distance of 64.64km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Chorus New Zealand Limited3

Licence and Location Details

Licence
Frequency6.84GHz
Frequency Range6.819GHz - 6.862GHz
Channel Width43MHz
Channel Code7GL2#
Power dBW(eirp)41.9
Emission43M0G9WWT
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance64.64km
RSM Licence ID22165
RSM Licence #58376
TX: Pihanga
AntennaCOMELIT - STAR 24-064 S/D
Antenna TypePARABOLIC T BAND
EquipmentFujitsu - DM6G-100H (+29)
RX: Whakapapataringa
AntennaCOMELIT - STAR 24-064 S/D
Antenna TypePARABOLIC T BAND
EquipmentFujitsu - DM6G-100H (+29)

Associated Licence

#1: Whakapapataringa
Frequency6.5GHz
Frequency Range6.479GHz - 6.522GHz
Channel Width43MHz
Channel Code7GL2
Power dBW(eirp)44
Emission43M0G9WWT
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID22166
RSM Licence #58381

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Chorus New Zealand LimitedPihangaUHF426.18MHz Waihaha Bay
Chorus New Zealand LimitedPihangaK21.238GHz Tokaanu Surge Chamber
Chorus New Zealand LimitedTokaanu Surge ChamberK22.47GHz Pihanga
Chorus New Zealand LimitedWaihaha BayUHF421.16MHz Pihanga

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Chorus New Zealand LimitedMaroa RoadVHF172.08MHz Whakapapataringa
Chorus New Zealand LimitedMaroa RoadUHF421.24MHz Whakapapataringa
Chorus New Zealand LimitedMaroa RoadUHF422.24MHz Whakapapataringa
Chorus New Zealand LimitedMaroanuiKu12.776GHz Whakapapataringa
Chorus New Zealand LimitedTaupoX11.305GHz Whakapapataringa
Chorus New Zealand LimitedTaupoX11.385GHz Whakapapataringa
Chorus New Zealand LimitedTram RoadVHF171.4MHz Whakapapataringa
Chorus New Zealand LimitedTram RoadUHF421.14MHz Whakapapataringa
Chorus New Zealand LimitedTram RoadUHF421.19MHz Whakapapataringa
Chorus New Zealand LimitedTram Road No3UHF421.06MHz Whakapapataringa
Chorus New Zealand LimitedWhakapapataringaVHF162.73MHz Tram Road
Chorus New Zealand LimitedWhakapapataringaVHF165.64MHz Maroa Road
Chorus New Zealand LimitedWhakapapataringaUHF426.08MHz Tram Road No3
Chorus New Zealand LimitedWhakapapataringaUHF426.15MHz Tram Road
Chorus New Zealand LimitedWhakapapataringaUHF426.2MHz Tram Road
Chorus New Zealand LimitedWhakapapataringaUHF426.25MHz Maroa Road
Chorus New Zealand LimitedWhakapapataringaUHF427.25MHz Maroa Road
Chorus New Zealand LimitedWhakapapataringaX10.775GHz Taupo
Chorus New Zealand LimitedWhakapapataringaX10.855GHz Taupo
Chorus New Zealand LimitedWhakapapataringaKu13.042GHz Maroanui
Vital LimitedMt NgongotahaC7.463GHz Whakapapataringa
Vital LimitedMt NgongotahaC7.551GHz Whakapapataringa
Vital LimitedPaeroa RangeKu15.187GHz Whakapapataringa
Vital LimitedRainbow MountainC7.896GHz Whakapapataringa
Vital LimitedTuhingamataC7.519GHz Whakapapataringa
Vital LimitedWhakapapataringaC7.624GHz Mt Ngongotaha
Vital LimitedWhakapapataringaC7.68GHz Tuhingamata
Vital LimitedWhakapapataringaC7.712GHz Mt Ngongotaha
Vital LimitedWhakapapataringaX8.207GHz Rainbow Mountain
Vital LimitedWhakapapataringaKu14.543GHz Paeroa Range
