Licence Overview

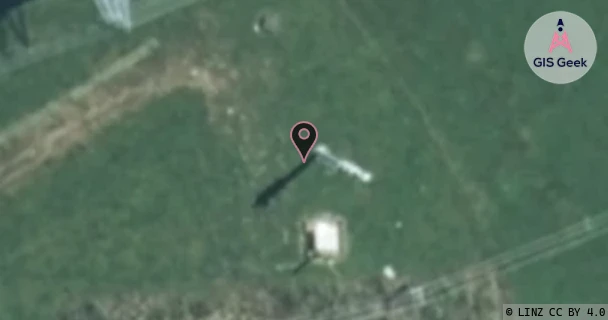

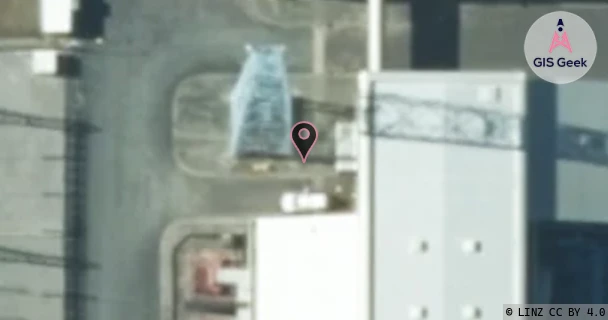

The link registered to Contact Energy Limited is a C band link at 7.236GHz. It transmits from Te Mihi Geothermal Power Station (Trig A), and is received at Ohaaki Geothermal Power Station, a distance of 23.02km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Contact Energy Limited | 2 |
Licence and Location Details
| TX: Te Mihi Geothermal Power Station (Trig A) | |
|---|---|
| Antenna | XIAN PUTIAN - WTC18-W71 |
| Antenna Type | PARABOLIC DUAL POL |
| Equipment | Ceragon - IP-20S |
| RX: Ohaaki Geothermal Power Station | |
|---|---|
| Antenna | XIAN PUTIAN - WTC12-W71 |
| Antenna Type | PARABOLIC DUAL POL |
| Equipment | Ceragon - IP-20S |
Associated Licence
| #1: Ohaaki Geothermal Power Station | |
|---|---|
| Frequency | 7.397GHz |
| Frequency Range | 7.37GHz - 7.426GHz |
| Channel Width | 56MHz |
| Channel Code | 7GM45A# |
| Power dBW(eirp) | 20.7 |
| Emission | 56M0D7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 217289 |
| RSM Licence # | 278572 |
