Licence Overview

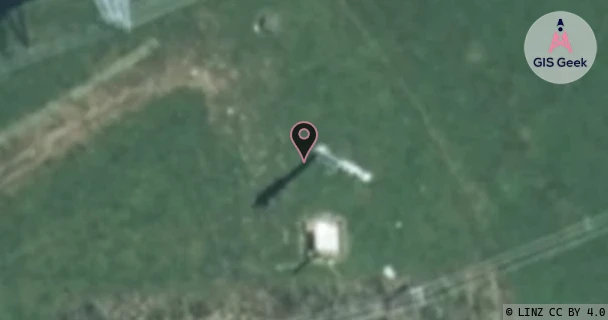

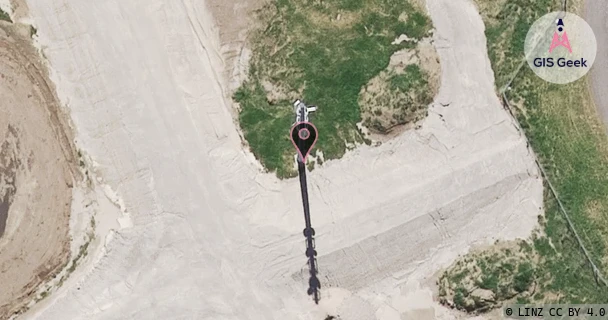

The link registered to Contact Energy Limited is a X band link at 11.015GHz. It transmits from Te Mihi Geothermal Power Station (Trig A), and is received at Centennial Drive Separator Plant, a distance of 8.13km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
TX Location Client Stats
| Client | Links |
|---|---|
| Contact Energy Limited | 2 |
Licence and Location Details
| TX: Te Mihi Geothermal Power Station (Trig A) | |
|---|---|
| Antenna | ANDREW - VHLP2.5-11 |
| Antenna Type | PARABOLIC Z BAND |
| Equipment | - |
| RX: Centennial Drive Separator Plant | |
|---|---|
| Antenna | ANDREW - VHLP2.5-11 |
| Antenna Type | PARABOLIC Z BAND |
| Equipment | - |
Associated Licence
| #1: Centennial Drive Separator Plant | |
|---|---|
| Frequency | 11.545GHz |
| Frequency Range | 11.525GHz - 11.565GHz |
| Channel Width | 40MHz |
| Channel Code | 11G9A# |
| Power dBW(eirp) | 27 |
| Emission | 40M0D7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 130882 |
| RSM Licence # | 219872 |
