Licence Overview
The link registered to Contact Energy Limited is a C band link at 7.397GHz. It transmits from Ohaaki Geothermal Power Station, and is received at Te Mihi Geothermal Power Station (Trig A), a distance of 23.02km.
TX: GIS Geek | LINZ | GMaps | Street View
RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
Licence and Location Details

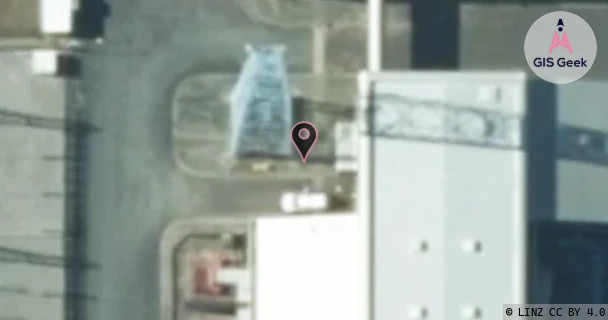

| TX: Ohaaki Geothermal Power Station | |
|---|---|
| Antenna | XIAN PUTIAN - WTC12-W71 |
| Antenna Type | PARABOLIC DUAL POL |
| Equipment | Ceragon - IP-20S |

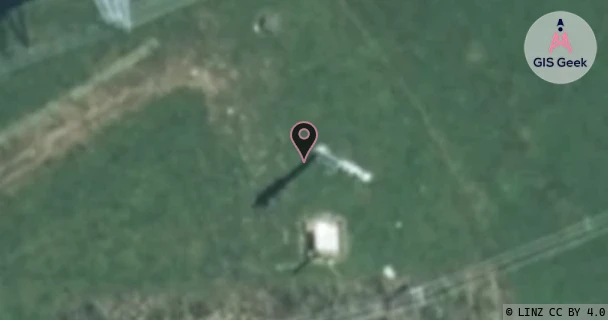

| RX: Te Mihi Geothermal Power Station (Trig A) | |
|---|---|
| Antenna | XIAN PUTIAN - WTC18-W71 |
| Antenna Type | PARABOLIC DUAL POL |
| Equipment | Ceragon - IP-20S |
Associated Licence
| #1: Te Mihi Geothermal Power Station (Trig A) | |
|---|---|
| Frequency | 7.236GHz |
| Frequency Range | 7.208GHz - 7.265GHz |
| Channel Width | 56MHz |
| Channel Code | 7GM45A |
| Power dBW(eirp) | 24.3 |
| Emission | 56M0D7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 217288 |
| RSM Licence # | 278571 |
