Point to Point Link: Two Degrees Networks Limited - Dunedin Stadium (Otg-071-043-G)

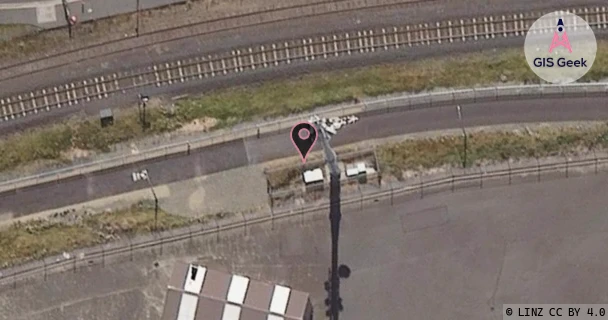

Two Degrees Networks Limited - Dunedin Stadium (Otg-071-043-G) aerial image

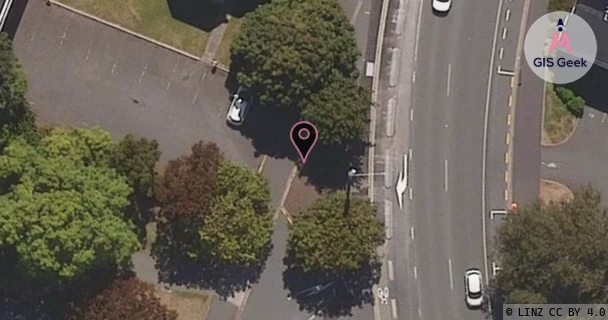

Two Degrees Networks Limited - Dunedin Stadium (Otg-071-043-G) aerial image

Licence Overview

The link registered to Two Degrees Networks Limited is a K band link at 22.82GHz. It transmits from Dunedin Stadium (Otg-071-043-G), and is received at University (Otg-071-013-H), a distance of 639m.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Two Degrees Networks Limited5

Licence and Location Details

Licence
Frequency22.82GHz
Frequency Range22.792GHz - 22.848GHz
Channel Width56MHz
Channel Code23G4A1#
Power dBW(eirp)19.3
Emission56M0D7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance639m
RSM Licence ID176324
RSM Licence #247171
TX: Dunedin Stadium (Otg-071-043-G)
AntennaHUAWEI - A23S03HAC
Antenna TypePARABOLIC 23 GHZ BAND
EquipmentHuawei - OPTIX RTN 900
RX: University (Otg-071-013-H)
AntennaRFS - SB1-220B
Antenna TypePARABOLIC 23 GHZ BAND
EquipmentHuawei - OPTIX RTN 900

Associated Licence

#1: University (Otg-071-013-H)
Frequency21.588GHz
Frequency Range21.56GHz - 21.616GHz
Channel Width56MHz
Channel Code23G4A1
Power dBW(eirp)20.6
Emission56M0D7WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID176323
RSM Licence #247170

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Two Degrees Networks LimitedDunedin Cbd North (Otg-071-009-C)K21.476GHz Dunedin Stadium (Otg-071-043-G)
Two Degrees Networks LimitedDunedin Cbd South (Otg-071-010-A)K21.7GHz Dunedin Stadium (Otg-071-043-G)
Two Degrees Networks LimitedDunedin Stadium (Otg-071-043-G)K18.36GHz Mt Cargill (Otg-071-015-A)
Two Degrees Networks LimitedDunedin Stadium (Otg-071-043-G)K18.415GHz Mt Cargill (Otg-071-015-A)
Two Degrees Networks LimitedDunedin Stadium (Otg-071-043-G)K22.484GHz Mornington (Otg-071-025-B)
Two Degrees Networks LimitedDunedin Stadium (Otg-071-043-G)K22.708GHz Dunedin Cbd North (Otg-071-009-C)
Two Degrees Networks LimitedDunedin Stadium (Otg-071-043-G)K22.932GHz Dunedin Cbd South (Otg-071-010-A)
Two Degrees Networks LimitedMornington (Otg-071-025-B)K21.252GHz Dunedin Stadium (Otg-071-043-G)
Two Degrees Networks LimitedMt Cargill (Otg-071-015-A)K19.37GHz Dunedin Stadium (Otg-071-043-G)
Two Degrees Networks LimitedMt Cargill (Otg-071-015-A)K19.425GHz Dunedin Stadium (Otg-071-043-G)
