Licence Overview
The link registered to Two Degrees Networks Limited is a K band link at 21.588GHz. It transmits from University (Otg-071-013-H), and is received at Dunedin Stadium (Otg-071-043-G), a distance of 639m.

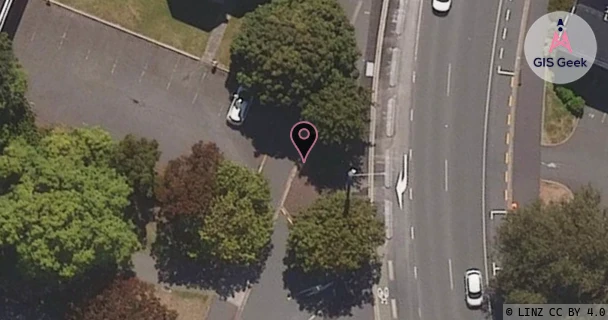

TX: GIS Geek | LINZ | GMaps | Street View

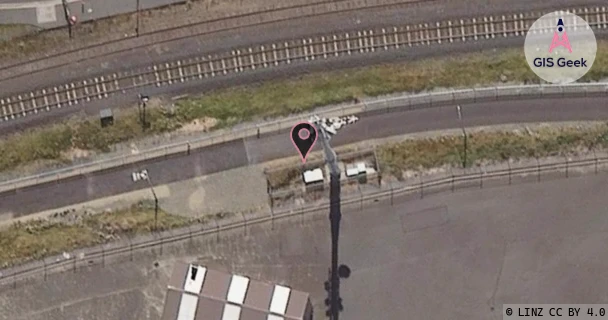

RX: GIS Geek | LINZ | GMaps | Street View
Login required to upload photos or suggest corrections.
Licence and Location Details
| TX: University (Otg-071-013-H) | |
|---|---|
| Antenna | RFS - SB1-220B |
| Antenna Type | PARABOLIC 23 GHZ BAND |
| Equipment | Huawei - OPTIX RTN 900 |
| RX: Dunedin Stadium (Otg-071-043-G) | |
|---|---|
| Antenna | HUAWEI - A23S03HAC |
| Antenna Type | PARABOLIC 23 GHZ BAND |
| Equipment | Huawei - OPTIX RTN 900 |
Associated Licence
| #1: Dunedin Stadium (Otg-071-043-G) | |
|---|---|
| Frequency | 22.82GHz |
| Frequency Range | 22.792GHz - 22.848GHz |
| Channel Width | 56MHz |
| Channel Code | 23G4A1# |
| Power dBW(eirp) | 19.3 |
| Emission | 56M0D7WWX |
| Licence Type | Fixed >=1 GHz (Bi-directional) |
| Commenced | - |
| Licence Last Updated | - |
| RSM Licence ID | 176324 |
| RSM Licence # | 247171 |
Additional Links From RX Location
| Client | TX Location | Band | Frequency | RX Location |
|---|---|---|---|---|
| Two Degrees Networks Limited | Dunedin Cbd North (Otg-071-009-C) | K | 21.476GHz | Dunedin Stadium (Otg-071-043-G) |
| Two Degrees Networks Limited | Dunedin Cbd South (Otg-071-010-A) | K | 21.7GHz | Dunedin Stadium (Otg-071-043-G) |
| Two Degrees Networks Limited | Dunedin Stadium (Otg-071-043-G) | K | 18.36GHz | Mt Cargill (Otg-071-015-A) |
| Two Degrees Networks Limited | Dunedin Stadium (Otg-071-043-G) | K | 18.415GHz | Mt Cargill (Otg-071-015-A) |
| Two Degrees Networks Limited | Dunedin Stadium (Otg-071-043-G) | K | 22.484GHz | Mornington (Otg-071-025-B) |
| Two Degrees Networks Limited | Dunedin Stadium (Otg-071-043-G) | K | 22.708GHz | Dunedin Cbd North (Otg-071-009-C) |
| Two Degrees Networks Limited | Dunedin Stadium (Otg-071-043-G) | K | 22.932GHz | Dunedin Cbd South (Otg-071-010-A) |
| Two Degrees Networks Limited | Mornington (Otg-071-025-B) | K | 21.252GHz | Dunedin Stadium (Otg-071-043-G) |
| Two Degrees Networks Limited | Mt Cargill (Otg-071-015-A) | K | 19.37GHz | Dunedin Stadium (Otg-071-043-G) |
| Two Degrees Networks Limited | Mt Cargill (Otg-071-015-A) | K | 19.425GHz | Dunedin Stadium (Otg-071-043-G) |
