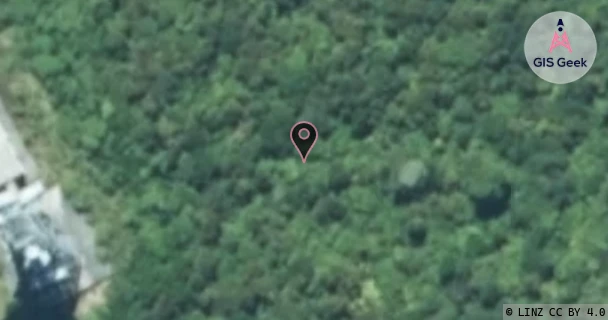

Chorus New Zealand Limited - Whakatau aerial image

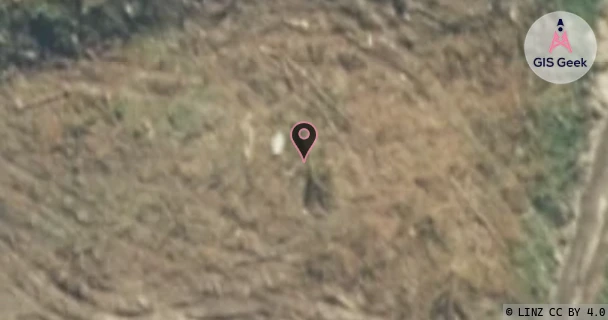

Chorus New Zealand Limited - Whakatau aerial image

Licence Overview

The link registered to Chorus New Zealand Limited is a C band link at 6.92GHz. It transmits from Whakatau, and is received at Whakapapataringa, a distance of 49.85km.

TX: GIS Geek | LINZ | GMaps | Street View

RX: GIS Geek | LINZ | GMaps | Street View

Login required to upload photos or suggest corrections.

TX Location Client Stats

ClientLinks
Chorus New Zealand Limited2
Eonfibre Limited2
Kordia Limited5
Vital Limited3

Licence and Location Details

Licence
Frequency6.92GHz
Frequency Range6.899GHz - 6.942GHz
Channel Width43MHz
Channel Code7GL4#
Power dBW(eirp)45.4
Emission43M0D9WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

Link Distance49.85km
RSM Licence ID22422
RSM Licence #58665
TX: Whakatau
AntennaANDREW - HPX12-65
Antenna TypePARABOLIC T BAND
EquipmentFujitsu - DM6G-100H (+29)
RX: Whakapapataringa
AntennaANDREW - HPX12-65
Antenna TypePARABOLIC T BAND
EquipmentFujitsu - DM6G-100H (+29)

Associated Licence

#1: Whakapapataringa
Frequency6.58GHz
Frequency Range6.558GHz - 6.602GHz
Channel Width43MHz
Channel Code7GL4
Power dBW(eirp)45.4
Emission43M0D9WWX
Licence TypeFixed >=1 GHz (Bi-directional)
Commenced

-

Licence Last Updated

-

RSM Licence ID22425
RSM Licence #58668

Additional Links From TX Location

Client TX Location Band Frequency RX Location
Chorus New Zealand LimitedTe WakaC6.5GHz Whakatau
Chorus New Zealand LimitedTe WakaC6.58GHz Whakatau
Chorus New Zealand LimitedTe WakaC6.66GHz Whakatau
Chorus New Zealand LimitedTe WakaC6.74GHz Whakatau
Chorus New Zealand LimitedWhakatauC6.84GHz Te Waka
Chorus New Zealand LimitedWhakatauC6.92GHz Te Waka
Chorus New Zealand LimitedWhakatauC7GHz Te Waka
Chorus New Zealand LimitedWhakatauC7.08GHz Te Waka
Eonfibre LimitedTaupo StraightsX10.795GHz Whakatau
Eonfibre LimitedWhakatauX11.325GHz Taupo Straights
Kordia LimitedMatea 2K19.48GHz Whakatau
Kordia LimitedPaeroa RangeC4.73GHz Whakatau
Kordia LimitedPaeroa RangeC4.77GHz Whakatau
Kordia LimitedPaeroa RangeC4.81GHz Whakatau
Kordia LimitedPaeroa RangeC4.85GHz Whakatau
Kordia LimitedPaeroa RangeC4.89GHz Whakatau
Kordia LimitedPaeroa RangeC4.93GHz Whakatau
Kordia LimitedPaeroa RangeC4.97GHz Whakatau
Kordia LimitedRangitaikiKu14.515GHz Whakatau
Kordia LimitedTataraakinaC4.73GHz Whakatau
Kordia LimitedTataraakinaC4.77GHz Whakatau
Kordia LimitedTataraakinaC4.81GHz Whakatau
Kordia LimitedTataraakinaC4.85GHz Whakatau
Kordia LimitedTataraakinaC4.89GHz Whakatau
Kordia LimitedTataraakinaC4.93GHz Whakatau
Kordia LimitedTataraakinaC4.97GHz Whakatau
Kordia LimitedWhakatauC4.43GHz Tataraakina
Kordia LimitedWhakatauC4.43GHz Paeroa Range
Kordia LimitedWhakatauC4.47GHz Tataraakina
Kordia LimitedWhakatauC4.47GHz Paeroa Range
Kordia LimitedWhakatauC4.51GHz Paeroa Range
Kordia LimitedWhakatauC4.51GHz Tataraakina
Kordia LimitedWhakatauC4.55GHz Paeroa Range
Kordia LimitedWhakatauC4.55GHz Tataraakina
Kordia LimitedWhakatauC4.59GHz Paeroa Range
Kordia LimitedWhakatauC4.59GHz Tataraakina
Kordia LimitedWhakatauC4.63GHz Tataraakina
Kordia LimitedWhakatauC4.63GHz Paeroa Range
Kordia LimitedWhakatauC4.67GHz Tataraakina
Kordia LimitedWhakatauC4.67GHz Paeroa Range
Kordia LimitedWhakatauKu15.159GHz Rangitaiki
Kordia LimitedWhakatauK18.47GHz Matea 2
Vital LimitedTaraponuiC7.463GHz Whakatau
Vital LimitedTuhingamataC7.547GHz Whakatau
Vital LimitedWhakatauC7.624GHz Taraponui
Vital LimitedWhakatauC7.708GHz Tuhingamata

Additional Links From RX Location

Client TX Location Band Frequency RX Location
Chorus New Zealand LimitedMaroa RoadVHF172.08MHz Whakapapataringa
Chorus New Zealand LimitedMaroa RoadUHF421.24MHz Whakapapataringa
Chorus New Zealand LimitedMaroa RoadUHF422.24MHz Whakapapataringa
Chorus New Zealand LimitedMaroanuiKu12.776GHz Whakapapataringa
Chorus New Zealand LimitedTaupoX11.305GHz Whakapapataringa
Chorus New Zealand LimitedTaupoX11.385GHz Whakapapataringa
Chorus New Zealand LimitedTram RoadVHF171.4MHz Whakapapataringa
Chorus New Zealand LimitedTram RoadUHF421.14MHz Whakapapataringa
Chorus New Zealand LimitedTram RoadUHF421.19MHz Whakapapataringa
Chorus New Zealand LimitedTram Road No3UHF421.06MHz Whakapapataringa
Chorus New Zealand LimitedWhakapapataringaVHF162.73MHz Tram Road
Chorus New Zealand LimitedWhakapapataringaVHF165.64MHz Maroa Road
Chorus New Zealand LimitedWhakapapataringaUHF426.08MHz Tram Road No3
Chorus New Zealand LimitedWhakapapataringaUHF426.15MHz Tram Road
Chorus New Zealand LimitedWhakapapataringaUHF426.2MHz Tram Road
Chorus New Zealand LimitedWhakapapataringaUHF426.25MHz Maroa Road
Chorus New Zealand LimitedWhakapapataringaUHF427.25MHz Maroa Road
Chorus New Zealand LimitedWhakapapataringaX10.775GHz Taupo
Chorus New Zealand LimitedWhakapapataringaX10.855GHz Taupo
Chorus New Zealand LimitedWhakapapataringaKu13.042GHz Maroanui
Vital LimitedMt NgongotahaC7.463GHz Whakapapataringa
Vital LimitedMt NgongotahaC7.551GHz Whakapapataringa
Vital LimitedPaeroa RangeKu15.187GHz Whakapapataringa
Vital LimitedRainbow MountainC7.896GHz Whakapapataringa
Vital LimitedTuhingamataC7.519GHz Whakapapataringa
Vital LimitedWhakapapataringaC7.624GHz Mt Ngongotaha
Vital LimitedWhakapapataringaC7.68GHz Tuhingamata
Vital LimitedWhakapapataringaC7.712GHz Mt Ngongotaha
Vital LimitedWhakapapataringaX8.207GHz Rainbow Mountain
Vital LimitedWhakapapataringaKu14.543GHz Paeroa Range
